Cooling System (Mechanical): Cooling: Fan: Components

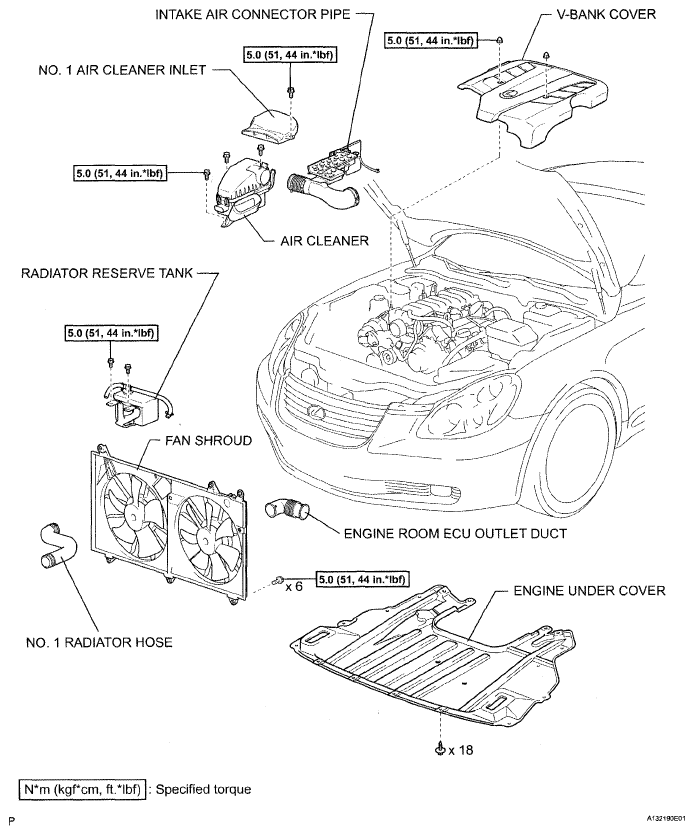

Fig 1: Fan Replacement Components With Torque Specifications (1 Of 2)
G05289328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

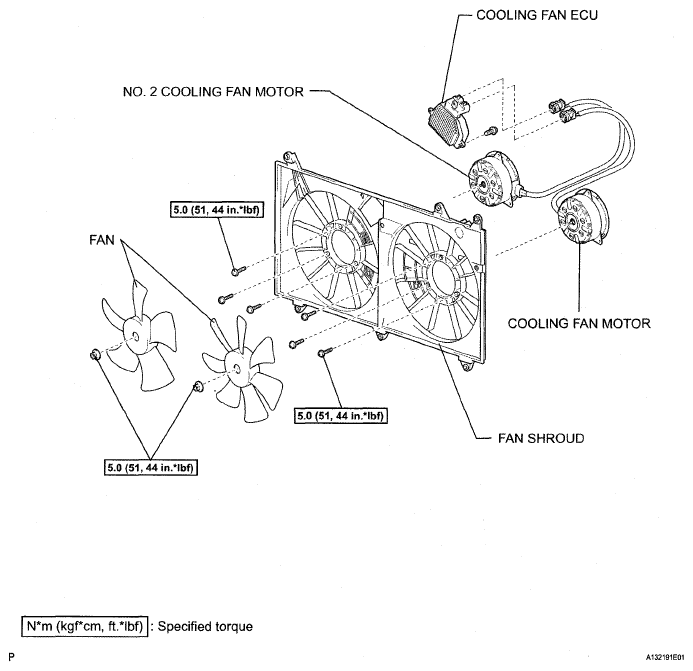

Fig 2: Fan Replacement Components With Torque Specifications (2 Of 2)
G05289329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
