Microphone Circuit between Multi-display and Navigation ECU
›
Wiring Diagram
Microphone Circuit between Multi-display and Navigation ECU: Wiring Diagram

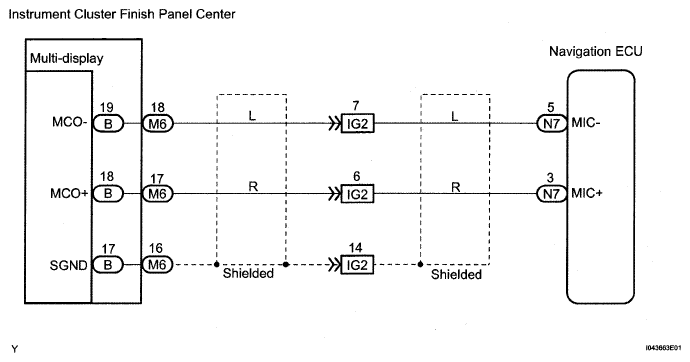

Fig 1: Microphone Between Multi-Display And Navigation ECU - Wiring Diagram
