Power Door Lock Control System
›
Parts Location
Parts Location

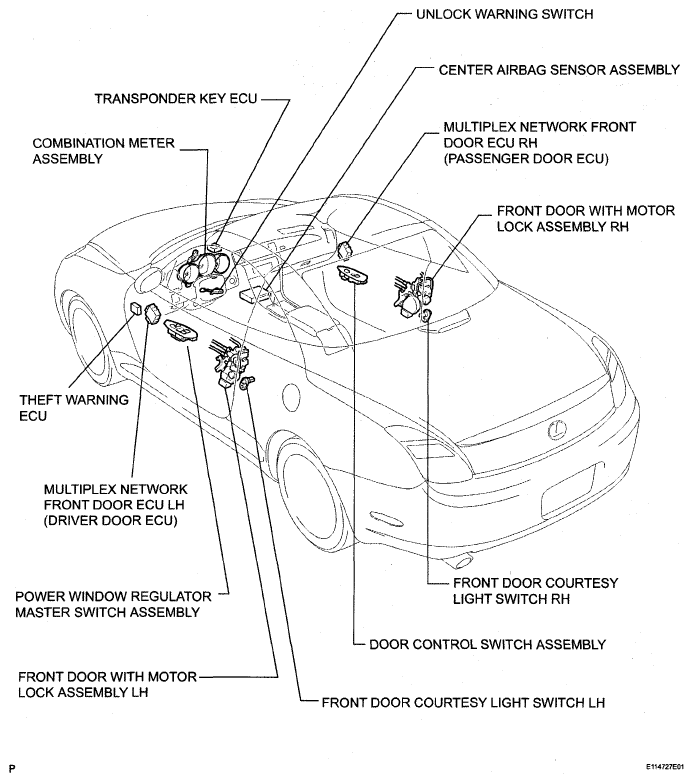

Fig 1: Identifying Power Door Lock Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
