Wireless Door Lock Buzzer: Components

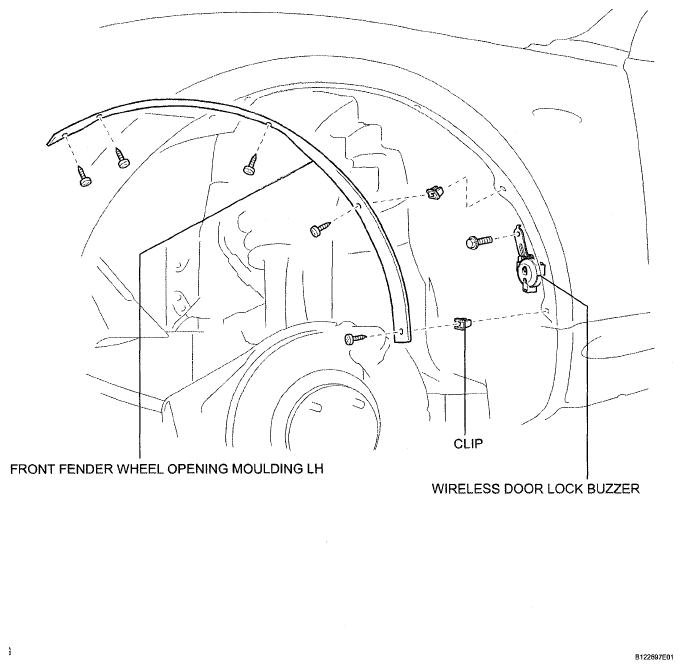

Fig 1: Identifying Wireless Door Lock Buzzer Components
G05292969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
