Power Window Control System
›
Driver Side Door ECU Power Source Circuit
›
Wiring Diagram
Driver Side Door ECU Power Source Circuit: Wiring Diagram

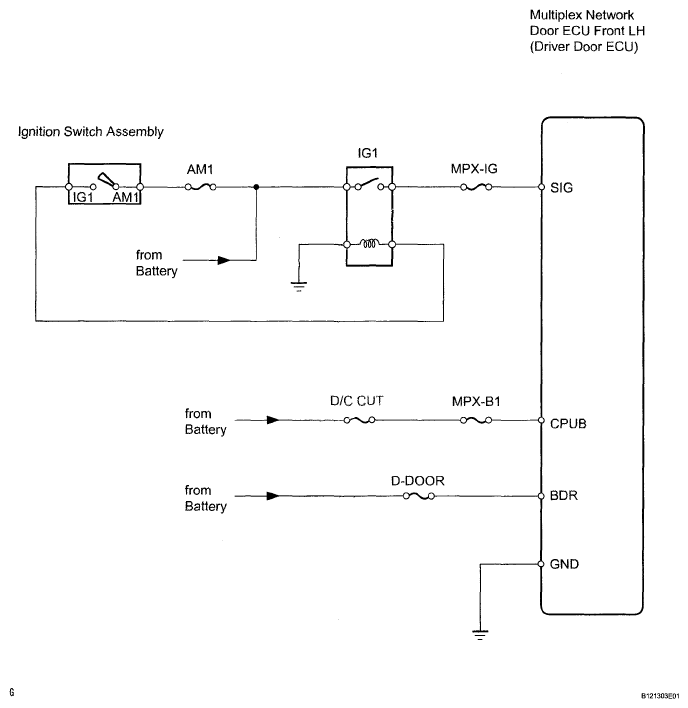

Fig 1: Driver Side Door ECU Power Source - Wiring Diagram
