Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

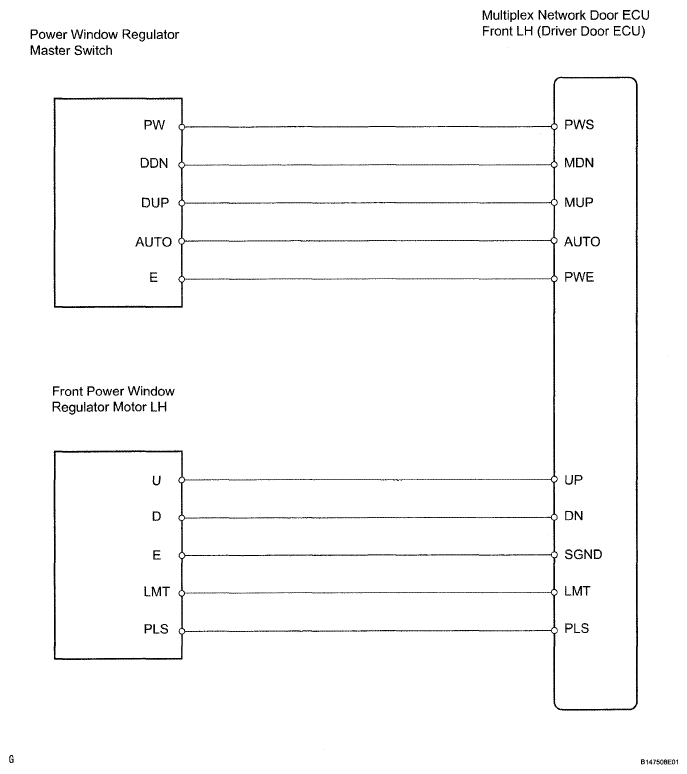

Fig 1: Driver Side Power Window Does Not Operate With Power Window Master Switch - Wiring Diagram
G05293437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
