Luggage Room Junction Block ECU Power Source Circuit
›
Wiring Diagram
Luggage Room Junction Block ECU Power Source Circuit: Wiring Diagram

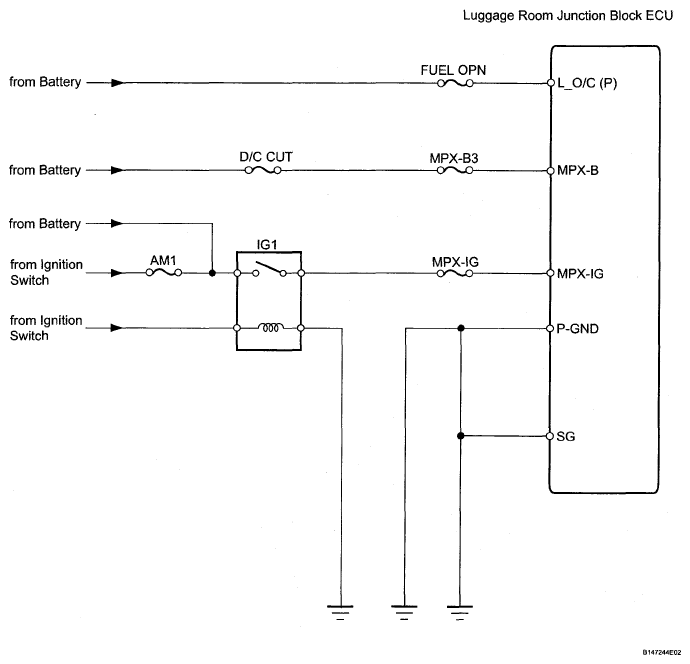

Fig 1: Luggage Room J/B ECU Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
