Brake Control
›
Vehicle Stability Control System
›
Brake Warning Light Circuit
›
Wiring Diagram
Brake Warning Light Circuit: Wiring Diagram

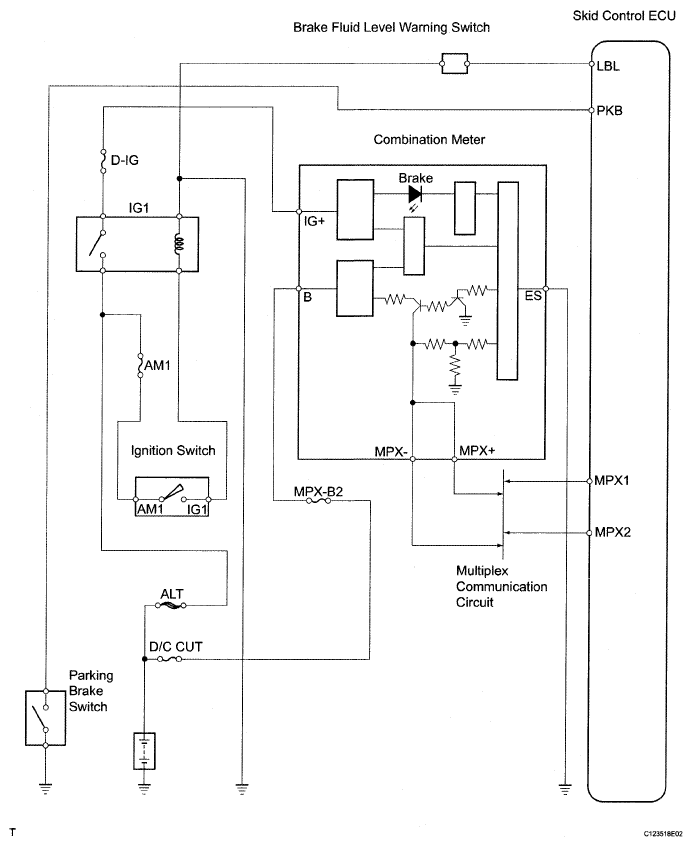

Fig 1: Brake Warning Light Circuit - Wiring Diagram
