DTC C1242/42 IG2 Power Source Circuit
›
Wiring Diagram
DTC C1242/42 IG2 Power Source Circuit: Wiring Diagram

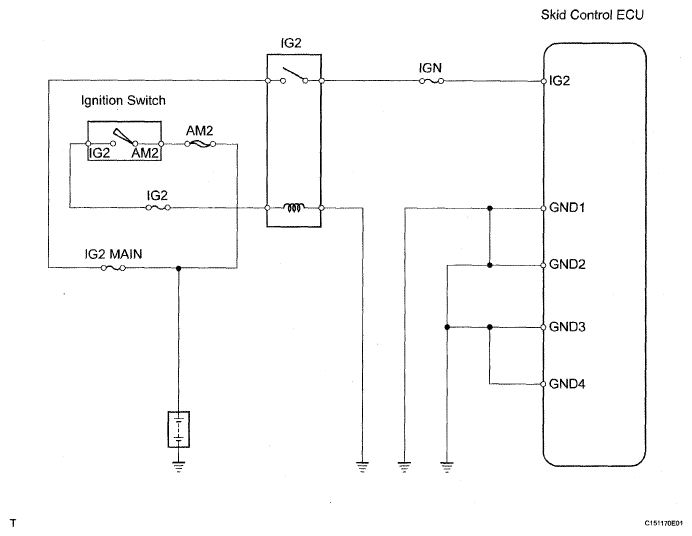

Fig 1: IG2 Power Source Circuit - Wiring Diagram
