Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control
›
Vehicle Stability Control System
›
Skid Control Buzzer Circuit
›
Wiring Diagram
Skid Control Buzzer Circuit: Wiring Diagram

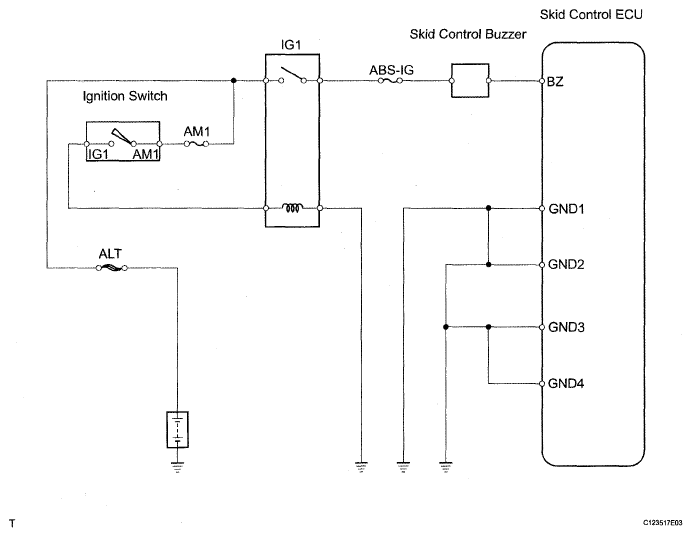

Fig 1: Skid Control Buzzer Circuit - Wiring Diagram
