TC and CG Terminal Circuit: Wiring Diagram

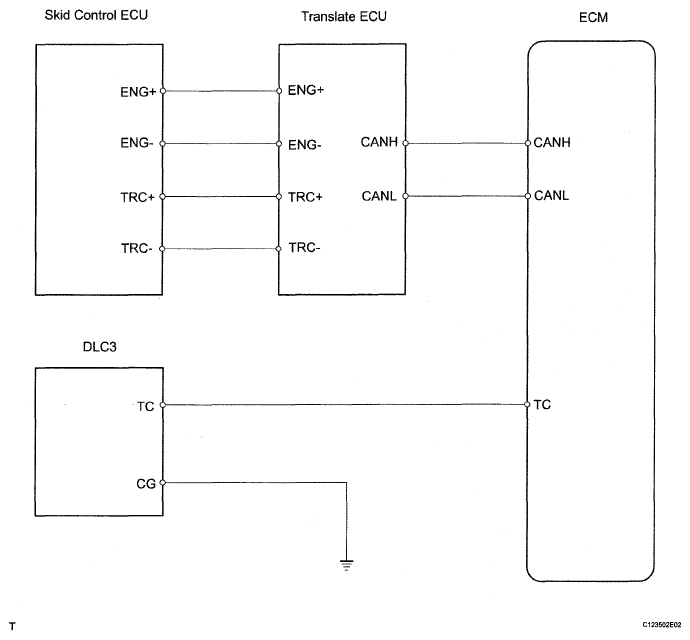

Fig 1: TC And CG Terminal Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
