Lexus
›
2007
›
SC 430
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Audio System
›
Notes
Audio System: Notes

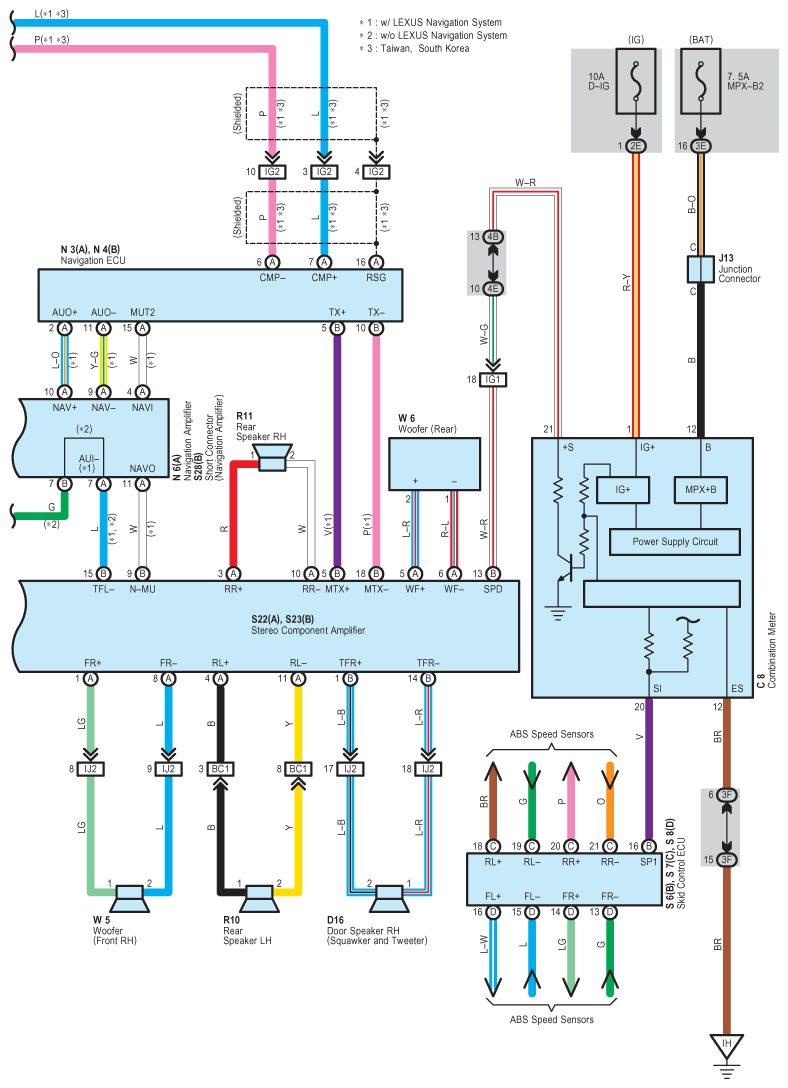

Fig 1: Audio System - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

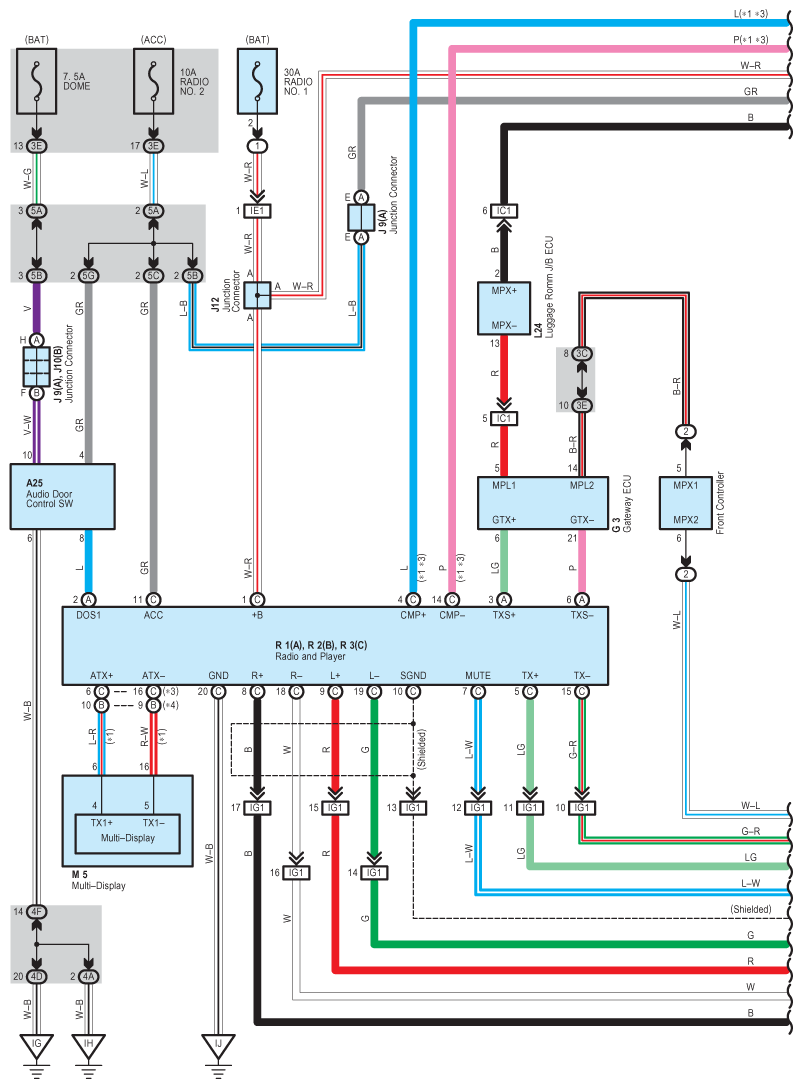

Fig 2: Audio System - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

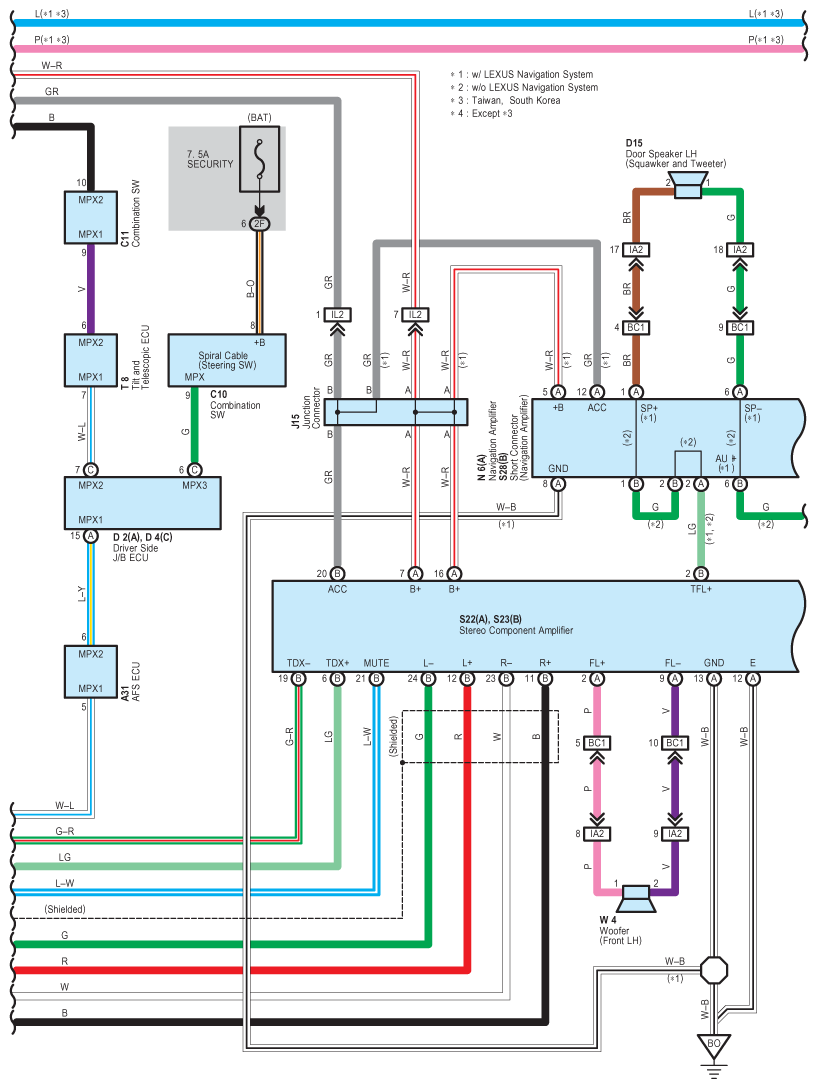

Fig 3: Audio System - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
