Auto Antenna: Notes

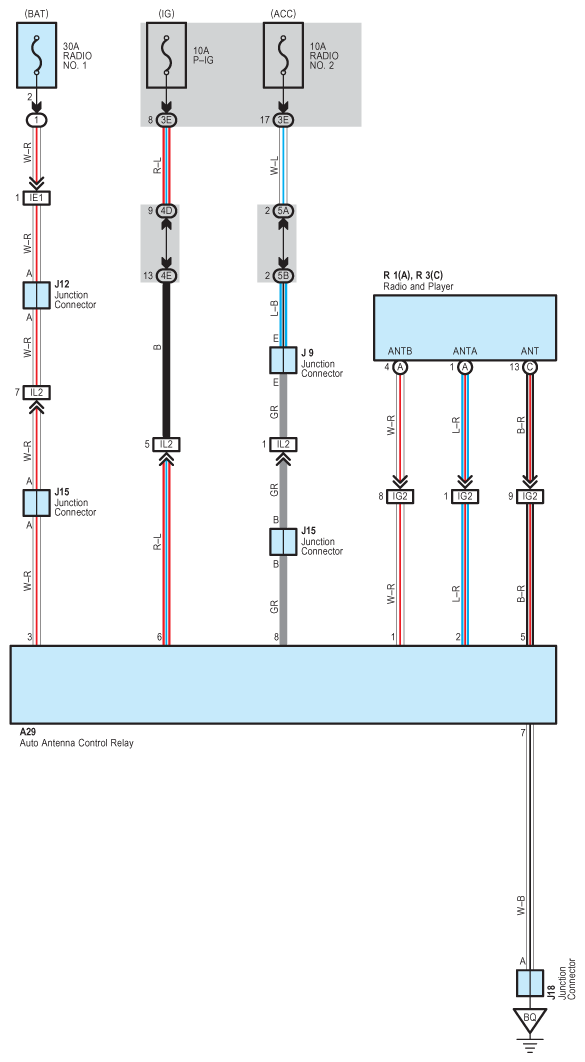

Fig 1: Auto Antenna - Circuit Diagram

G08933919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
