Lexus
›
2007
›
SC 430
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Front Fog Light
›
Notes
Front Fog Light: Notes

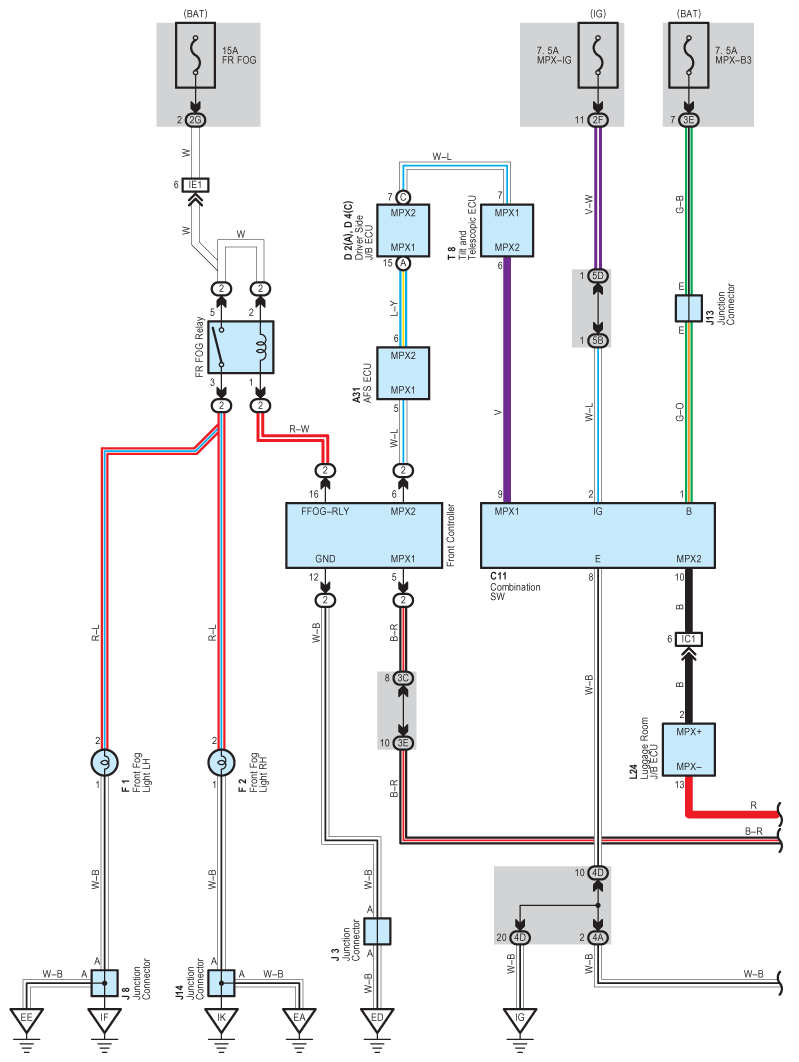

Fig 1: Front Fog Light - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

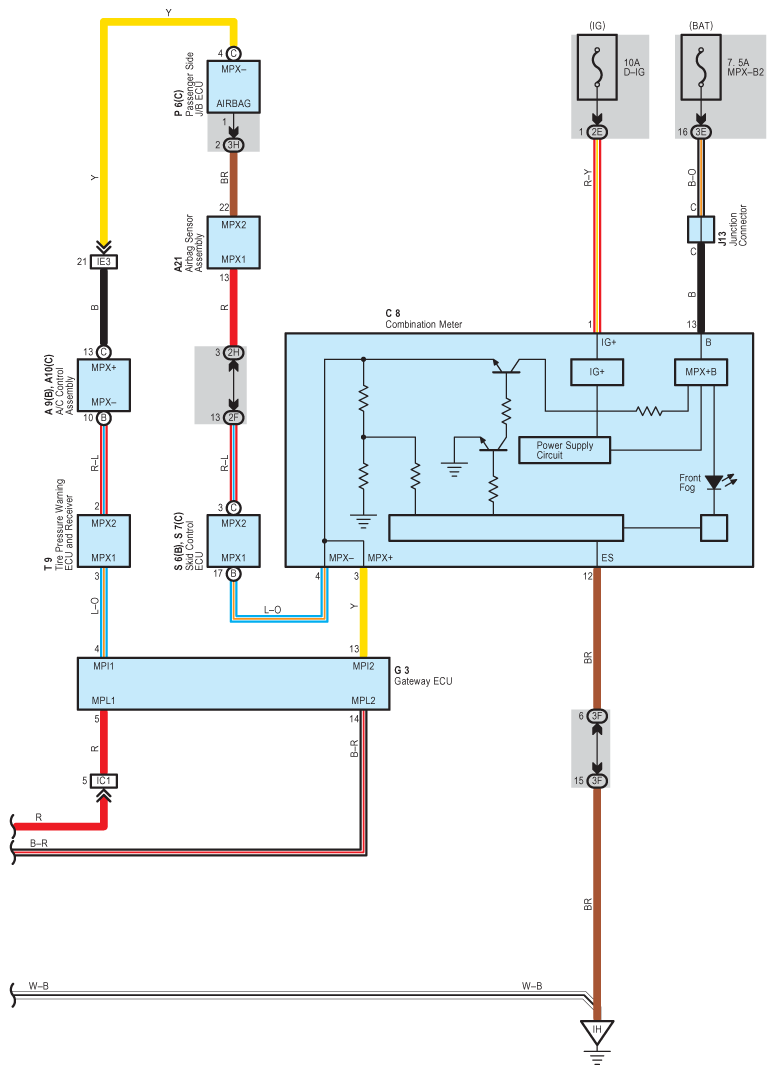

Fig 2: Front Fog Light - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
