Home › Lexus › 2007 › SC 430 › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Horn › Notes

OEM System Circuits: Horn: Notes

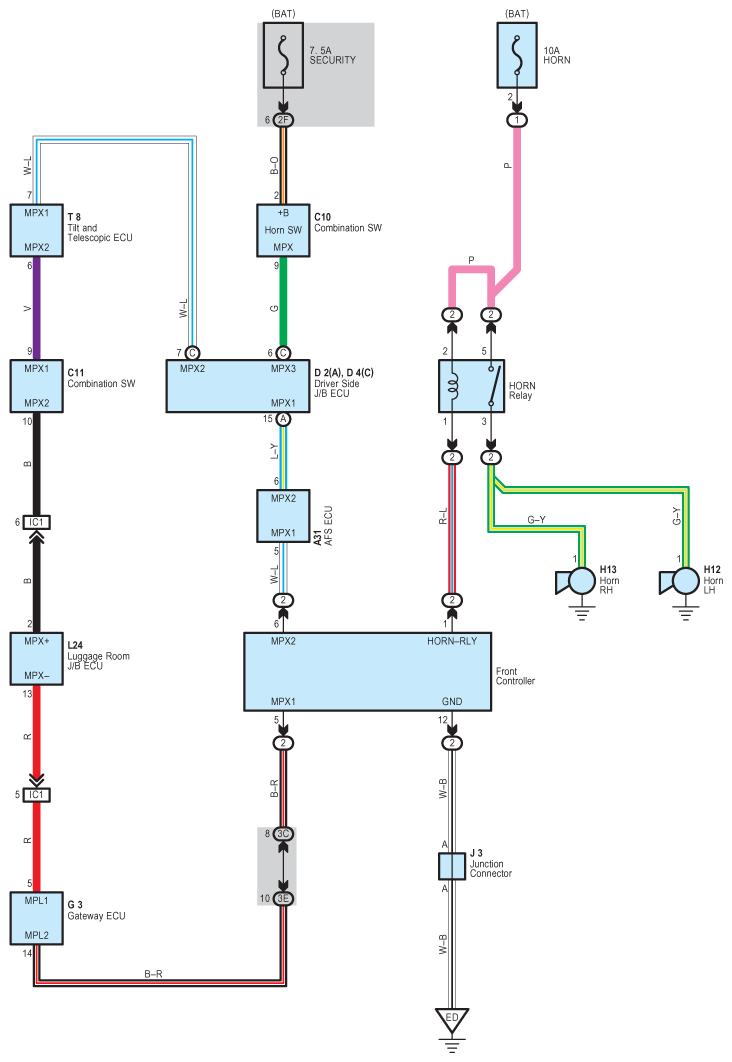

Fig 1: Horn - Circuit Diagram
G08933906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
