Key Reminder and Seat Belt Warning: Notes

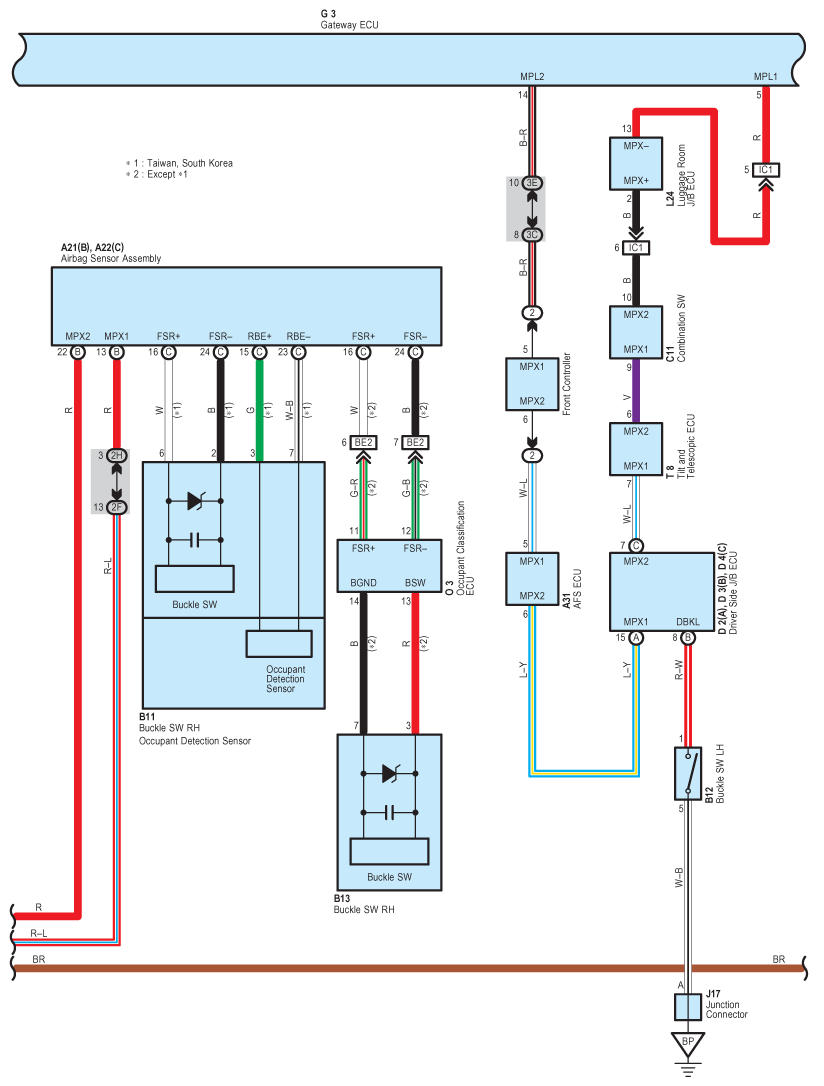

Fig 1: Key Reminder And Seat Belt Warning - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

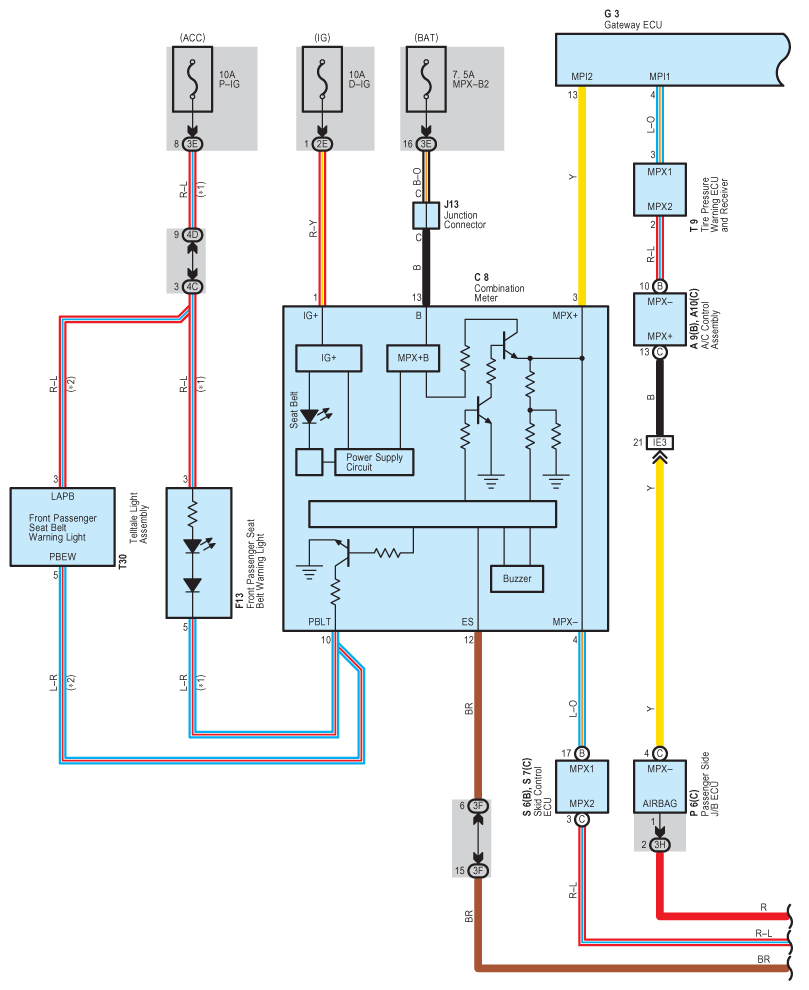

Fig 2: Key Reminder And Seat Belt Warning - Wiring Diagram (2 Of 3)

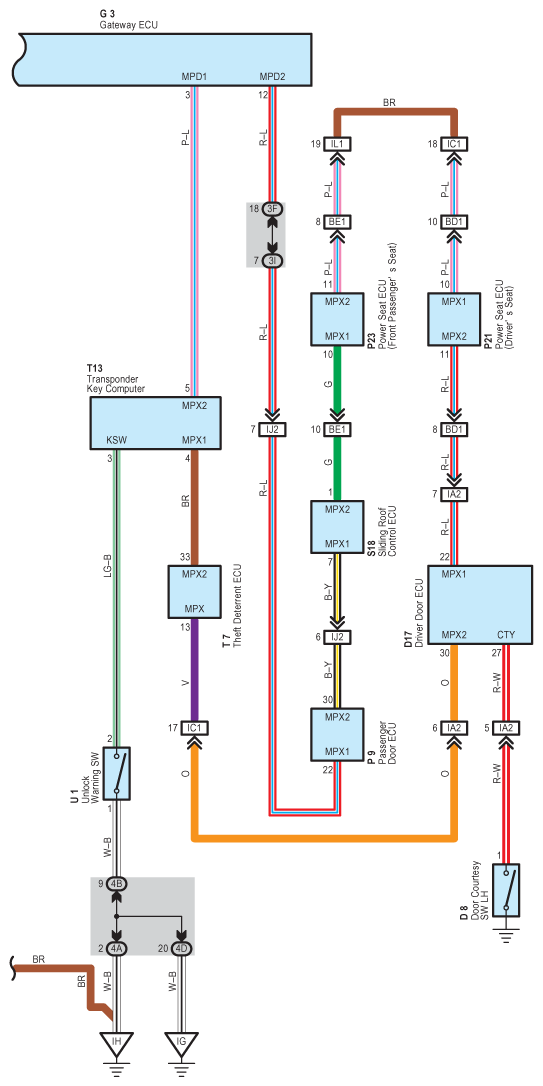

Fig 3: Key Reminder And Seat Belt Warning - Wiring Diagram (3 Of 3)
