Power Tilt and Power Telescopic: Notes

Fig 1: Power Tilt And Power Telescopic - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

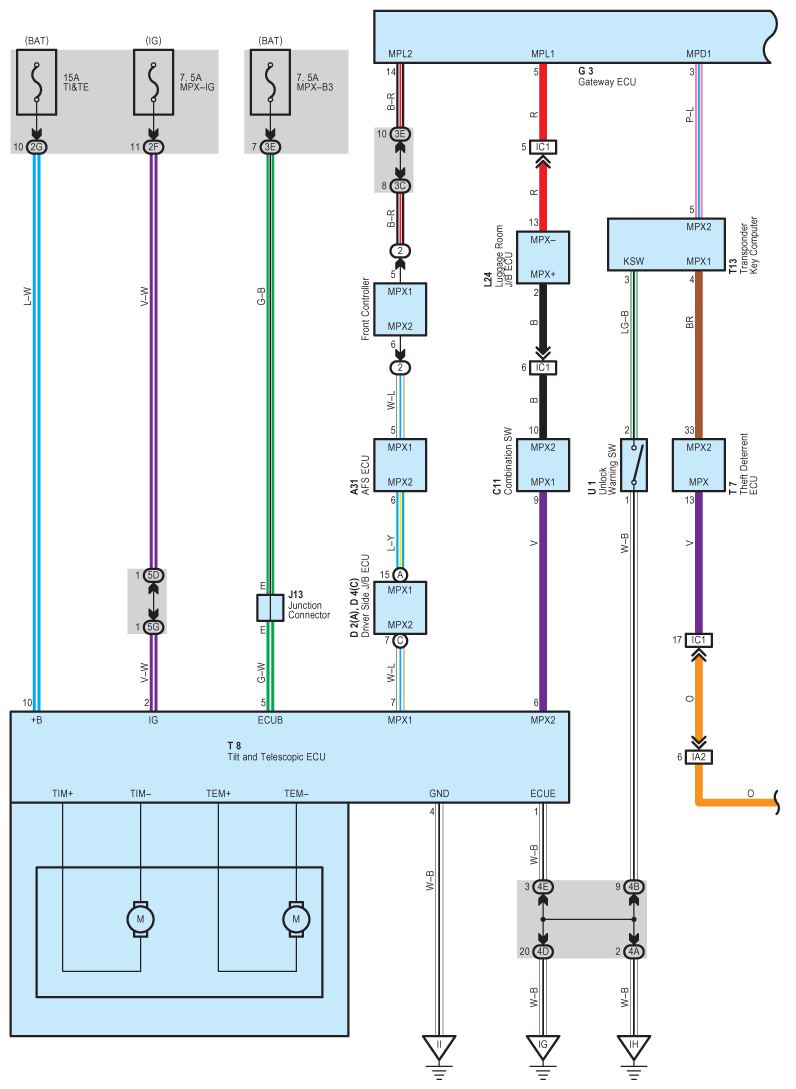

Fig 2: Power Tilt And Power Telescopic - Wiring Diagram (2 Of 2)
