Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the 2 claws to install the instrument panel safety pad (with instrument panel reinforcement and steering column).
    2. Install the instrument panel safety pad with the 8 bolts, 2 caps and steering yoke bolt.

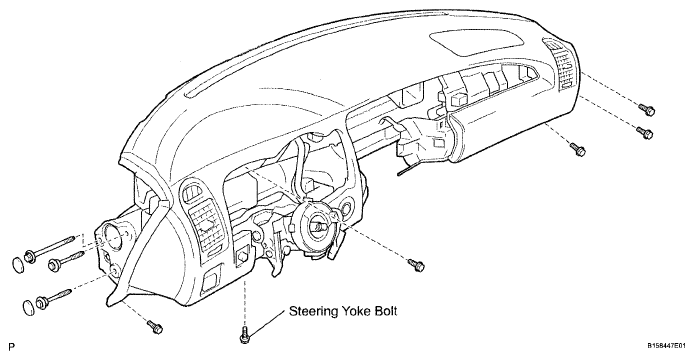

      Fig 1: Identifying Instrument Panel Safety Pad Bolts
      G05293646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connectors.

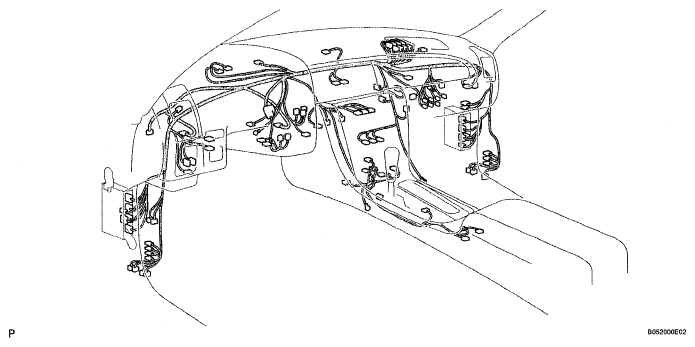

      Fig 2: Identifying Instrument Panel Safety Pad Sub-Assembly Connectors
      G05293647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the floor carpet.
  2. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 6 claws to install the panel
      Fig 3: Identifying Panel Claws
      G05293648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT PILLAR GARNISH RH
    1. Attach the claw and 2 clips to install the pillar garnish.
  4. INSTALL FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for RH side.

    Fig 4: Identifying Pillar Garnish Claw And Clips
    G05293649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the brace with the 2 nuts and 2 bolts.
      Fig 5: Identifying No. 1 Instrument Panel Brace Sub-Assembly Bolts And Nuts
      G05293650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the brace with the bolt and nut.
    2. Install the tire pressure monitor receiver with the 2 bolts.
      Fig 6: Identifying No. 2 Instrument Panel Brace Sub-Assembly Bolts
      G05293651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CONSOLE BOX ASSEMBLY
    1. Attach the 2 clips to install the console box.
    2. Install the 8 bolts and 4 screws.
      Fig 7: Identifying Console Box Bolts And Screws
      G05293652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 3 BOX PANEL
    1. Attach the 7 claws to install the panel
  9. INSTALL CONSOLE BOX CARPET
    Fig 8: Identifying Panel Claws
    G05293653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connectors.
      CAUTION: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Install the glove compartment door together with the airbag assembly.
    3. Install the 2 screws.
    4. Install the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 9: Identifying Connectors
      G05293654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 3 clips and 2 claws to install the under cover.
  12. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (w/ LEXUS Navigation System)
    Fig 10: Identifying Under Cover Claws And Clips
    G05293655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (w/ LEXUS Navigation System)
    1. Attach the 6 clips and 2 claws to install the panel garnish.
      Fig 11: Identifying Panel Garnish Clips And Claws
      G05293656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY (w/ LEXUS Navigation System)
    1. Attach the 3 clips and 2 claws to install the safety pad garnish.
      Fig 12: Identifying Safety Pad Garnish Clips And Claws
      G05293657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY (w/o LEXUS Navigation System)
    1. Attach the 5 clips and 4 claws to install the safety pad garnish.
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
    Fig 13: Identifying Safety Pad Garnish Clips And Claws
    G05293658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connector.
    2. Attach the 6 clips to install the air conditioning control.
      Fig 14: Identifying Air Conditioning Control Clips
      G05293659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 6 clips and 4 claws to install the panel.
      Fig 15: Identifying Panel Clips And Claws
      G05293660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR CONSOLE UPPER PANEL GARNISH
    1. Connect the connectors.
    2. Attach the 4 claws to install the panel garnish.
      Fig 16: Identifying Panel Garnish Claws
      G05293661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the combination meter with the 4 screws.
  21. INSTALL TURN SIGNAL SWITCH ASSEMBLY (See  INSTALLATION  )
  22. INSTALL STEERING COLUMN COVER LOWER (See  INSTALLATION  )
  23. INSTALL STEERING COLUMN COVER UPPER
    Fig 17: Identifying Combination Meter Screws
    G05293662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 4 clips to install the panel.
  25. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
    Fig 18: Identifying Panel Clips
    G05293663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the 4 Clips to install the safety pad.
    2. Install the 3 bolts.
    3. Connect the hood lock control cable and connectors.
      Fig 19: Identifying No. 1 Instrument Panel Safety Pad Sub-Assembly Bolts
      G05293664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT DOOR OPENING TRIM COVER RH
    1. Attach the 3 claws to install the trim cover.
  28. INSTALL FRONT DOOR OPENING TRIM COVER LH

    HINT:

    Use the same procedures described for RH side.

    Fig 20: Identifying Trim Cover Claws
    G05293665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL DOOR SCUFF PLATE ASSEMBLY RH
    1. Connect the connector.
    2. Attach the 4 claws and 5 clips to install the door scuff plate.
  30. INSTALL DOOR SCUFF PLATE ASSEMBLY LH

    HINT:

    Use the same procedures described for RH side.

  31. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
    Fig 21: Identifying Door Scuff Plate Clips And Claws
    G05293666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL STEERING PAD ASSEMBLY (See  DISPOSAL  )
  33. INSTALL STEERING PAD SWITCH MODULATOR (See  INSTALLATION  )
  34. INSTALL SWITCH AND VOLUME CASE (See  INSTALLATION  )
  35. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  36. SET STEERING WHEEL CENTER POINT
  37. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  38. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  39. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
