Emission Control: Canister: Components

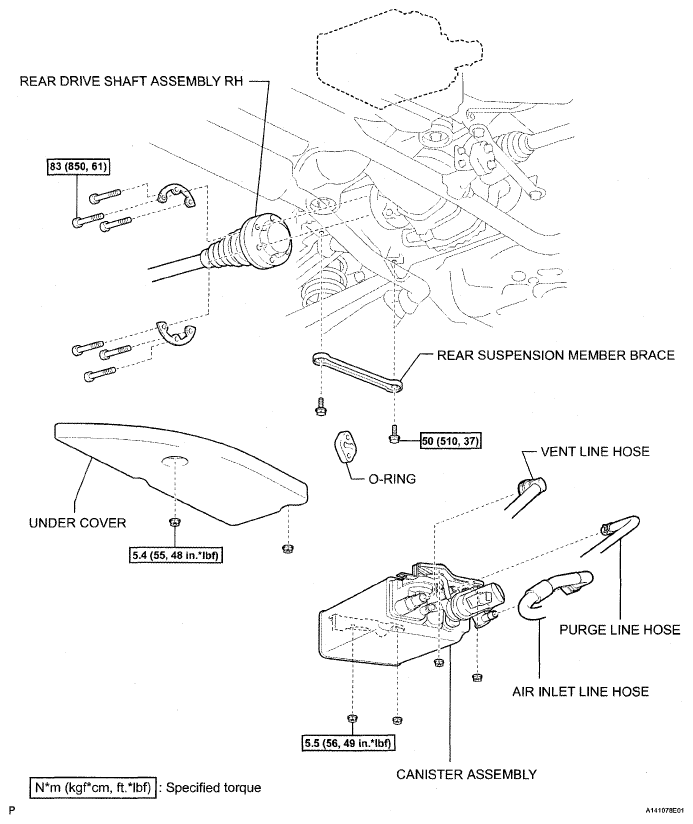

Fig 1: Canister Replacement Components With Torque Specifications

G05289215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
