Exhaust Pipe: Components

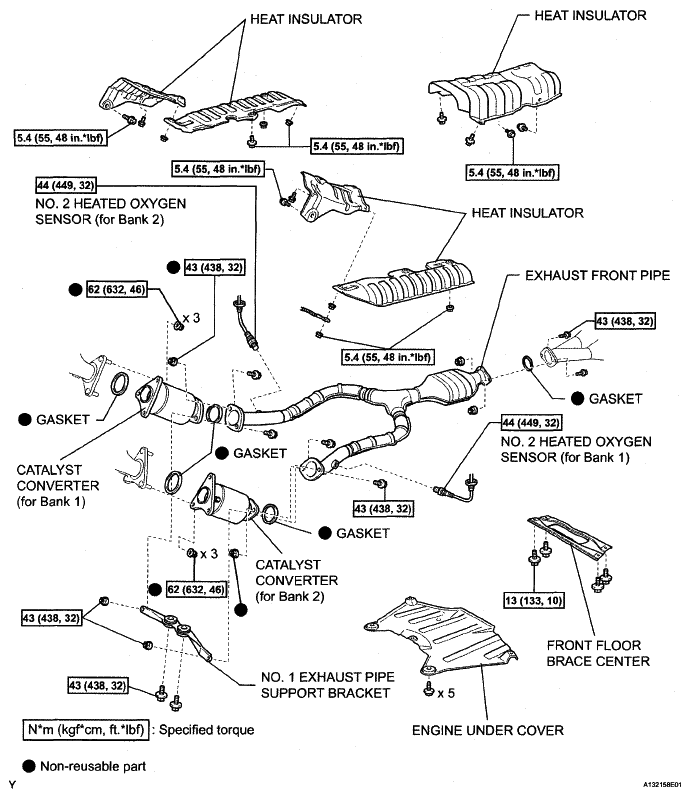

Fig 1: Exhaust Pipe Replacement Components (With Torque Specifications; 1 Of 2)
G05289296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

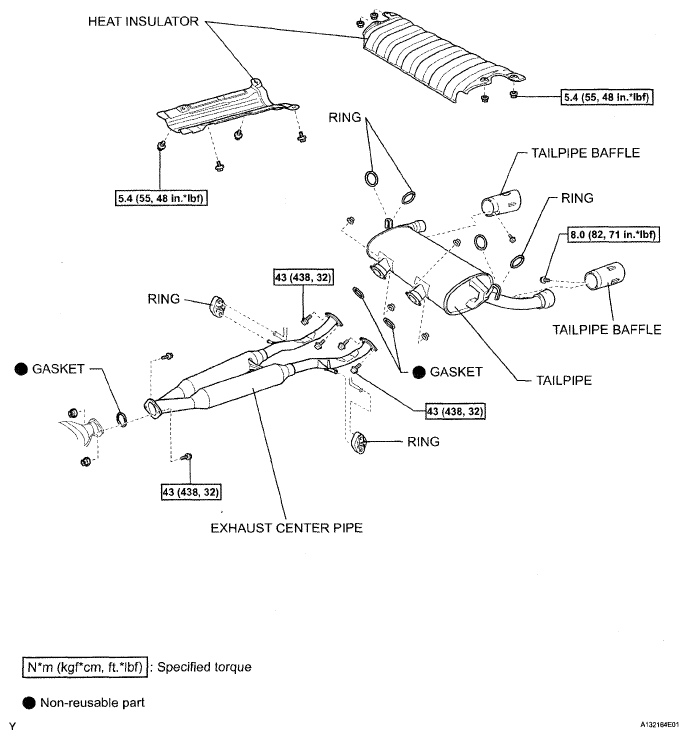

Fig 2: Exhaust Pipe Replacement Components (With Torque Specifications; 2 Of 2)
G05289297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
