DTC P0617 Starter Relay Circuit High
›
Wiring Diagram
DTC P0617 Starter Relay Circuit High: Wiring Diagram

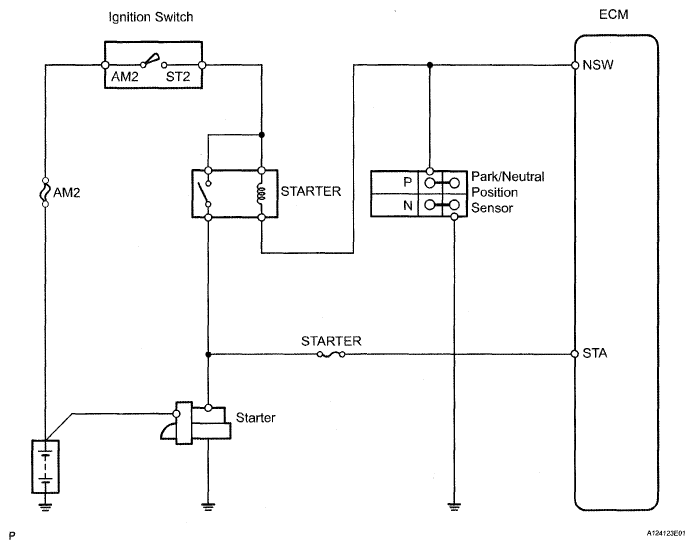

Fig 1: Starter Relay Circuit High - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
