Fuel Pressure Pulsation Damper: Components

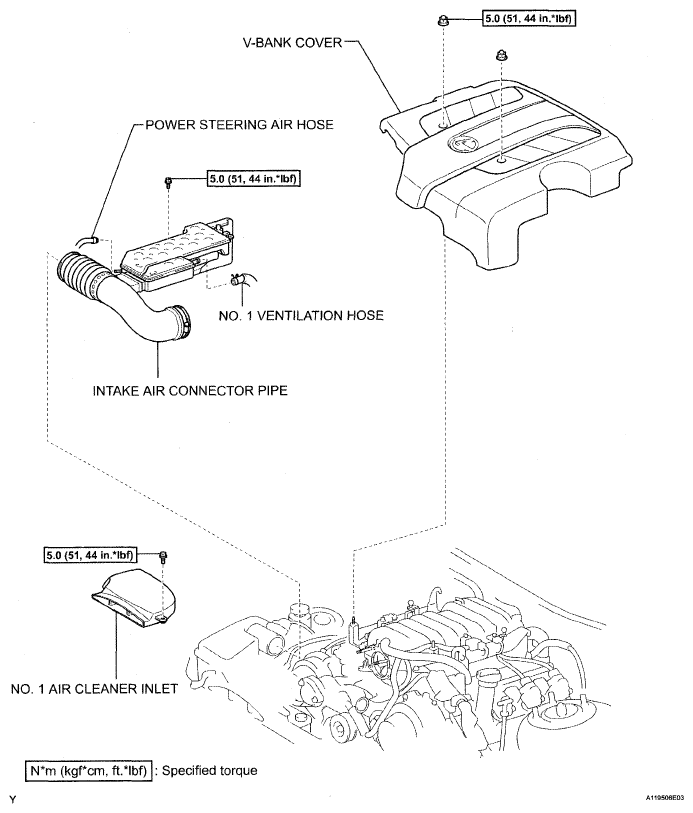

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (1 Of 2)
G05289176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

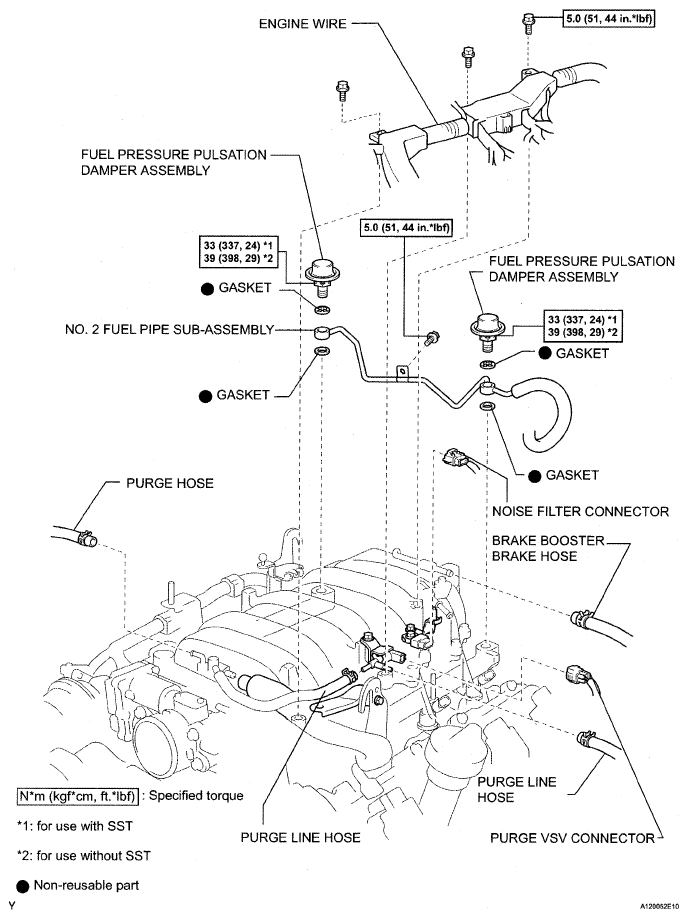

Fig 2: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
G05289177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
