Park / Neutral Position Switch: Components

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G05289680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

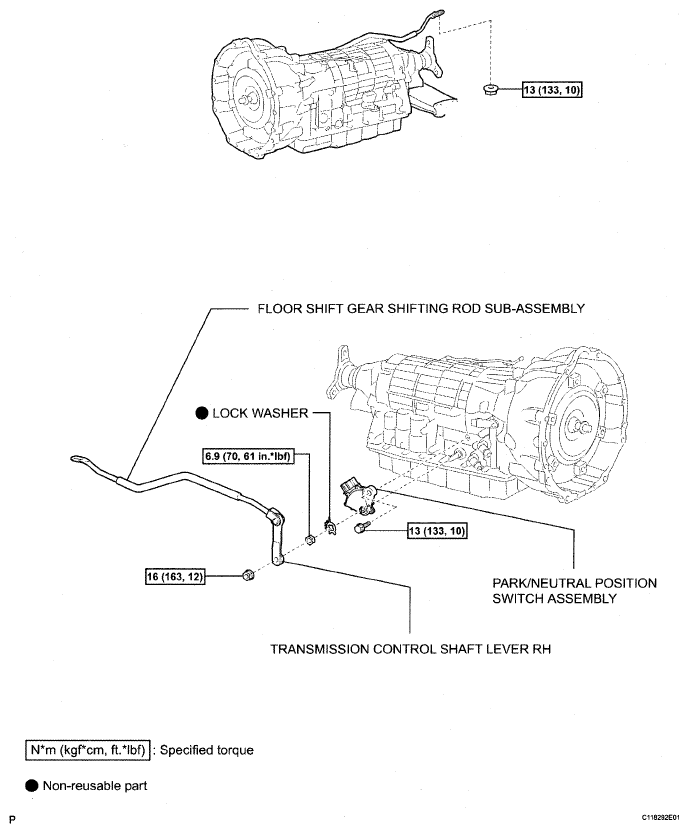

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05289681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
