DTC B2312 Power Window Switch Malfunction
›
Wiring Diagram
DTC B2312 Power Window Switch Malfunction: Wiring Diagram

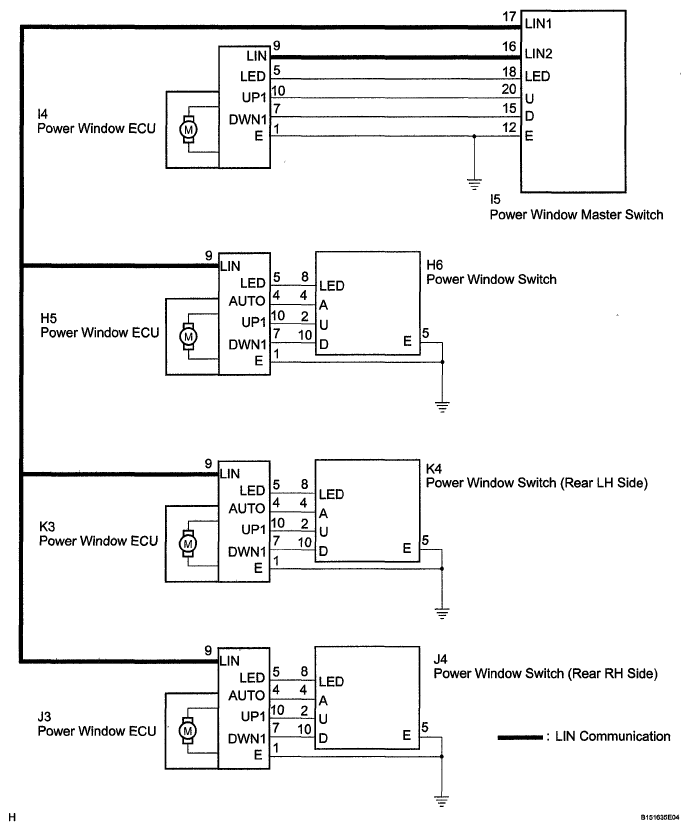

Fig 1: Power Window Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
