Entry Lock Switch Circuit: Wiring Diagram

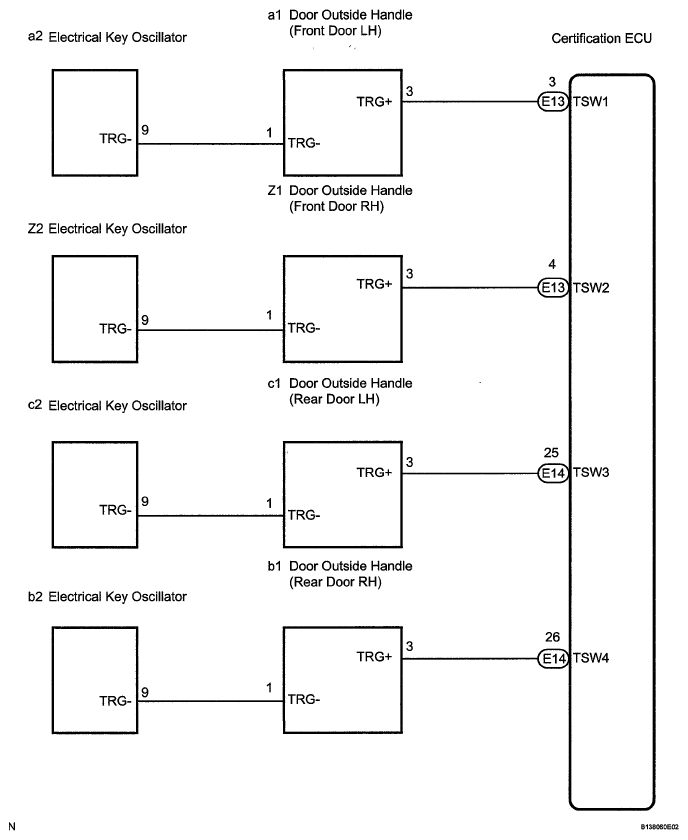

Fig 1: Entry Lock Switch - Wiring Diagram
G05837733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
