Touch Sensor Circuit: Wiring Diagram

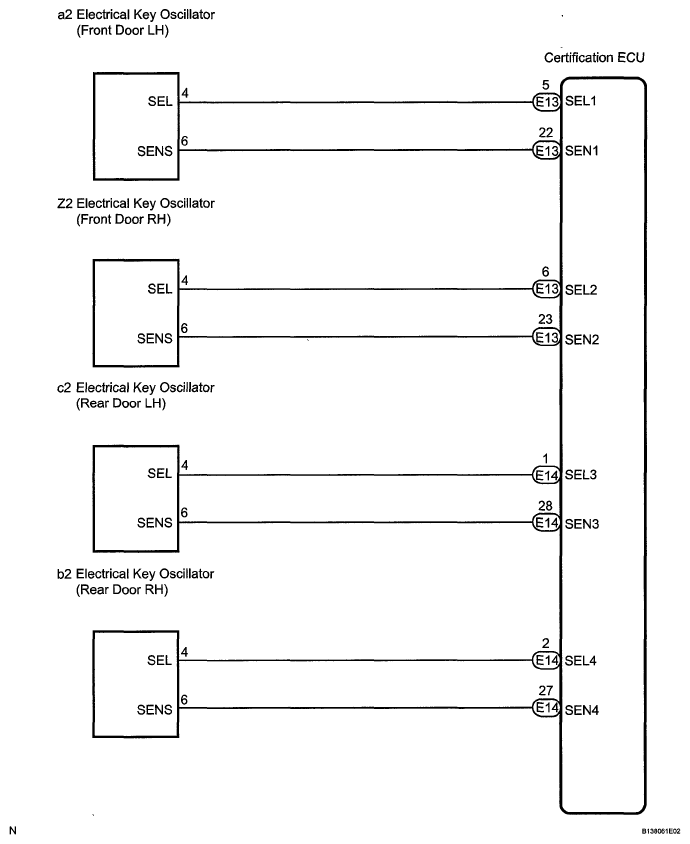

Fig 1: Touch Sensor - Wiring Diagram

G05837737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
