Rear Sunshade Assembly: Components

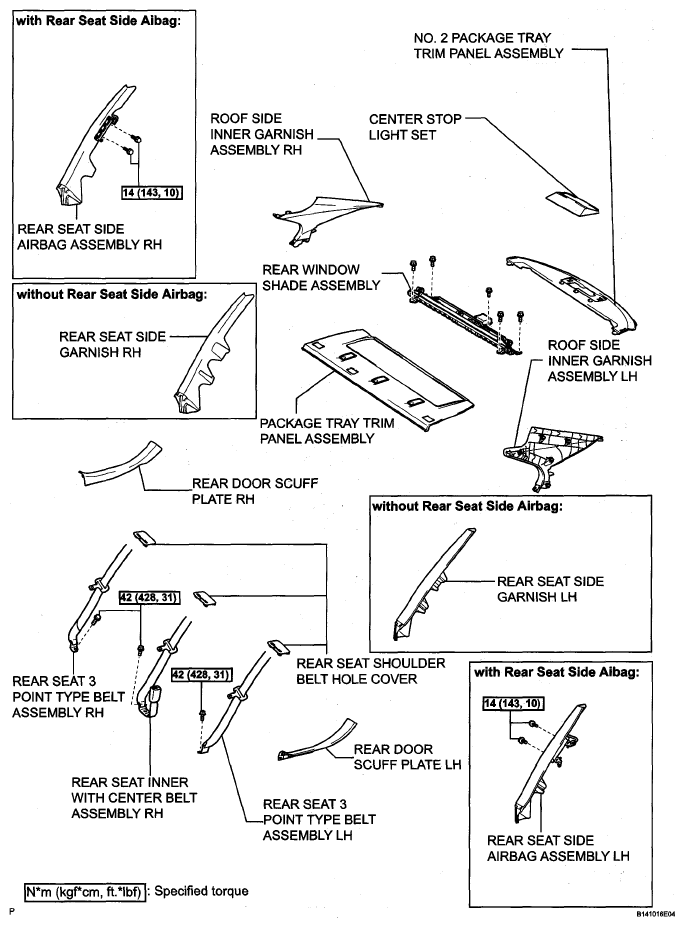

Fig 1: Rear Sunshade Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Sunshade Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

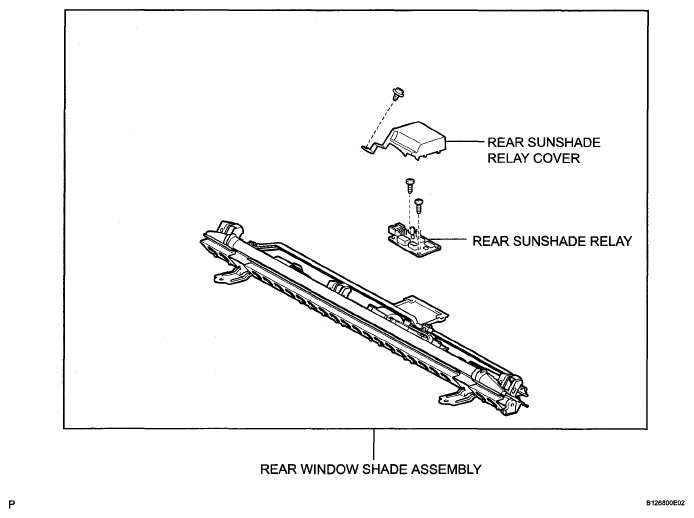

Fig 3: Identifying Rear Sunshade Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
