Clock with Navigation System: Notes

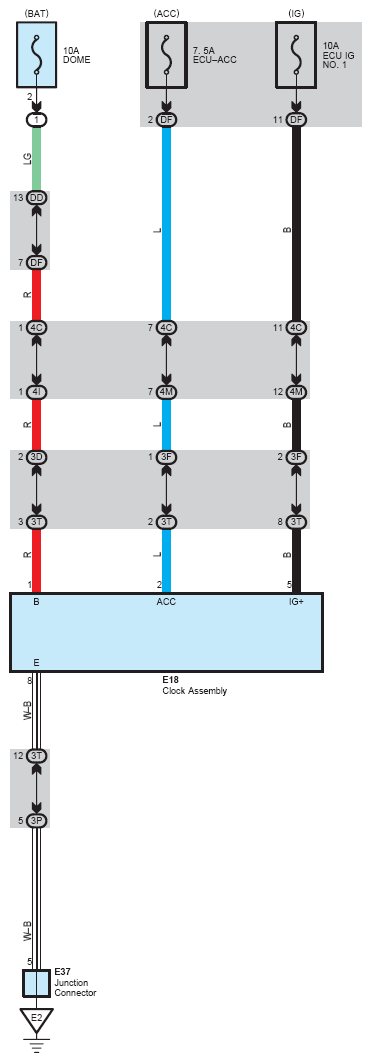

Fig 1: Clock With Navigation System - Circuit Diagram

G07619293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
