Fuel Lid Opener: Notes

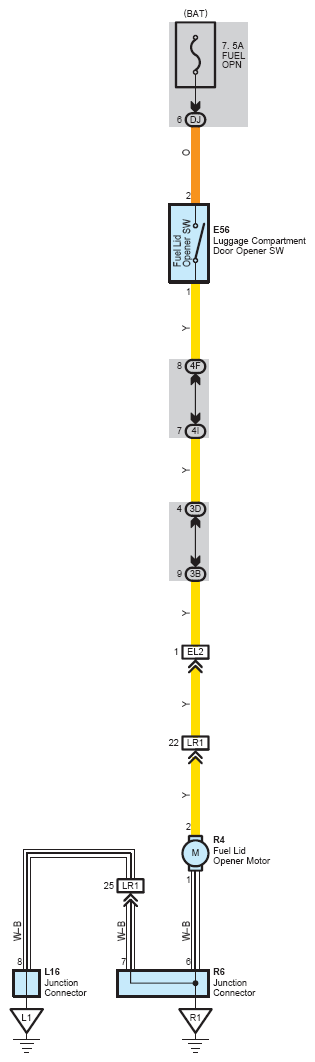

Fig 1: Fuel Lid Opener - Circuit Diagram
G07619261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
