Wiper and Washer without Auto Wiper System
›
Notes
Wiper and Washer without Auto Wiper System: Notes

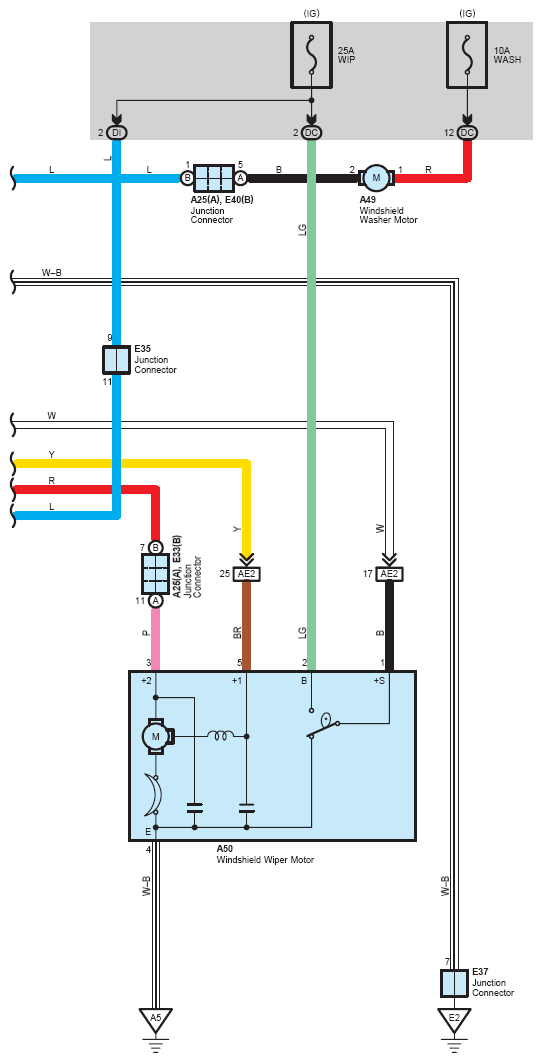

Fig 1: Wiper And Washer Without Auto Wiper System - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

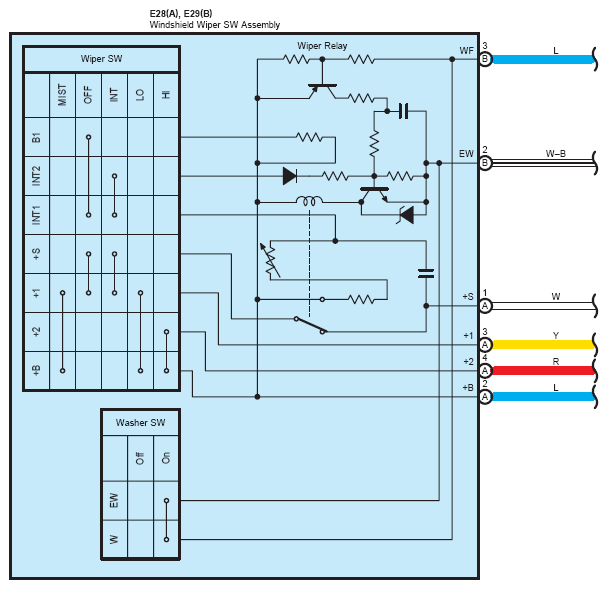

Fig 2: Wiper And Washer Without Auto Wiper System - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
