Repair and Diagnosis
›
Electrical
›
Starter
›
Starting
›
Starting System
›
System Diagram
System Diagram

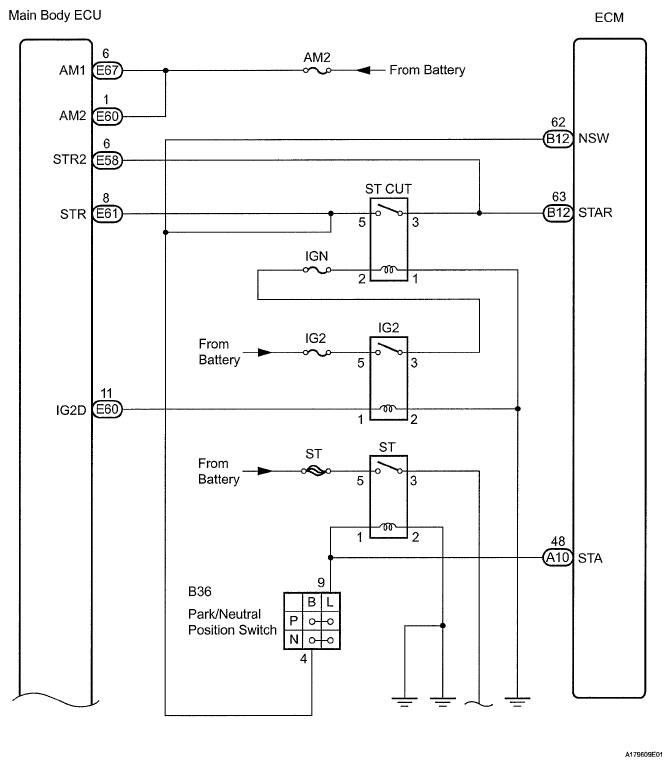

Fig 1: Starting System - System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

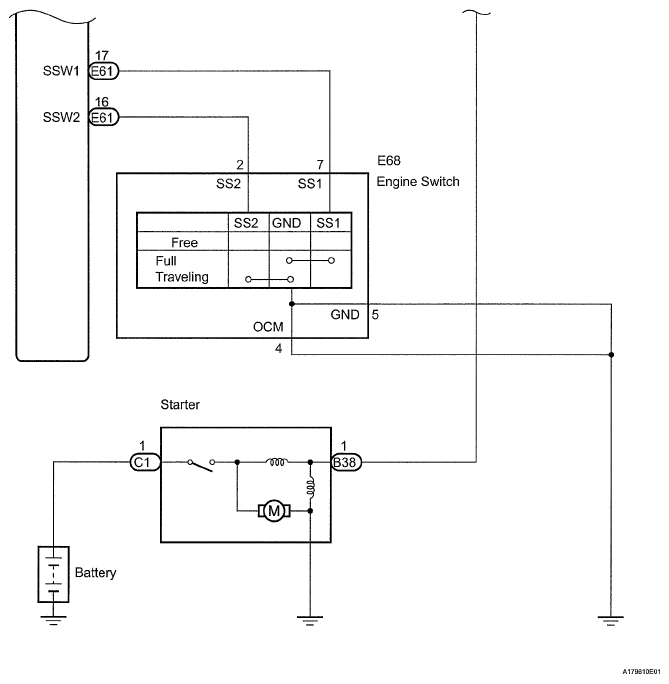

Fig 2: Starting System - System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
