Engine Control System - System & Component Testing, Removal, Inspection & Installation
›
Acceleration Sensor
›
Components
Acceleration Sensor: Components

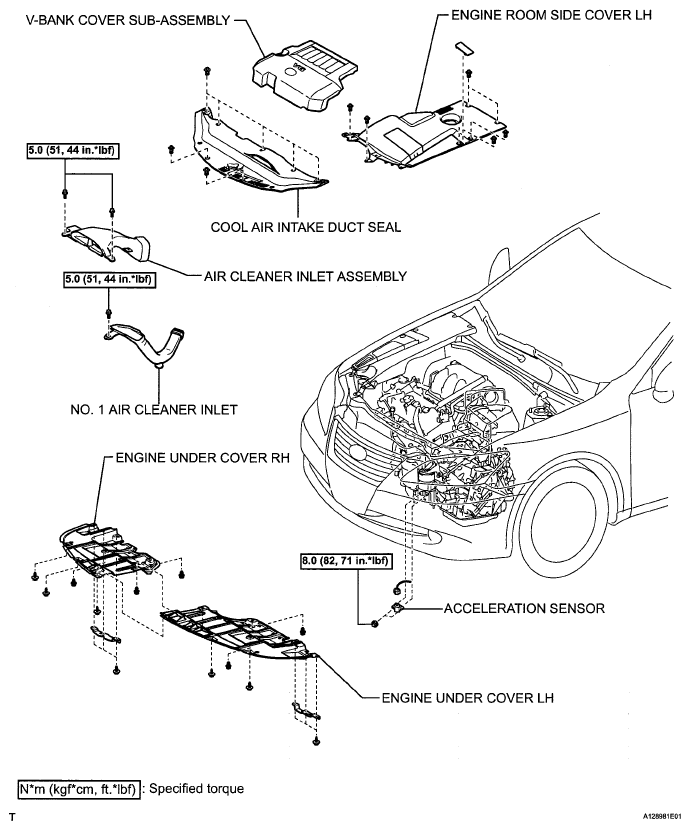

Fig 1: Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
