Active Control Engine Mount
›
Components
Active Control Engine Mount: Components

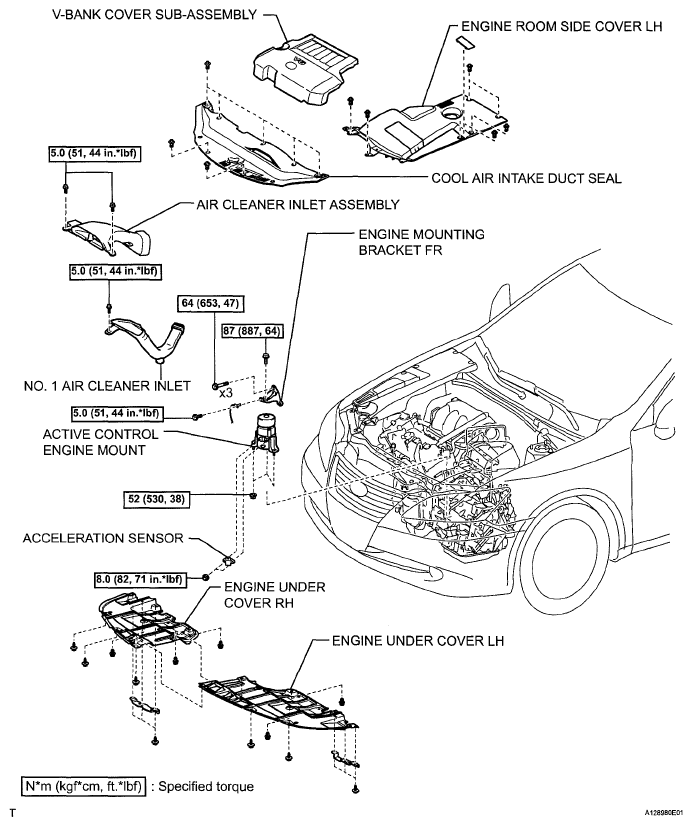

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
