MIL Circuit: Wiring Diagram

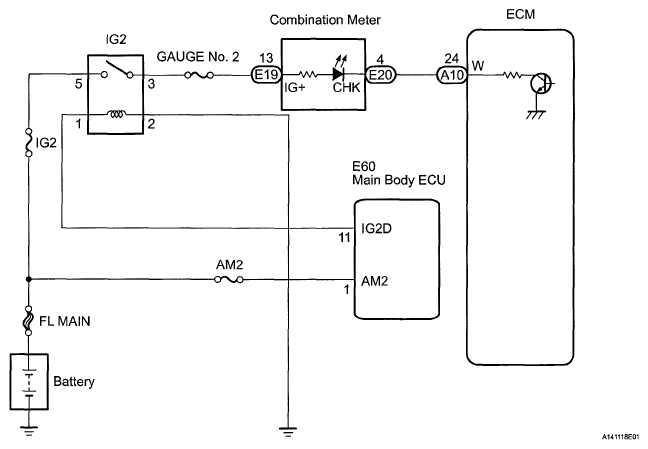

Fig 1: MIL - Wiring Diagram
G05247885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
