Automatic Light Control Sensor: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

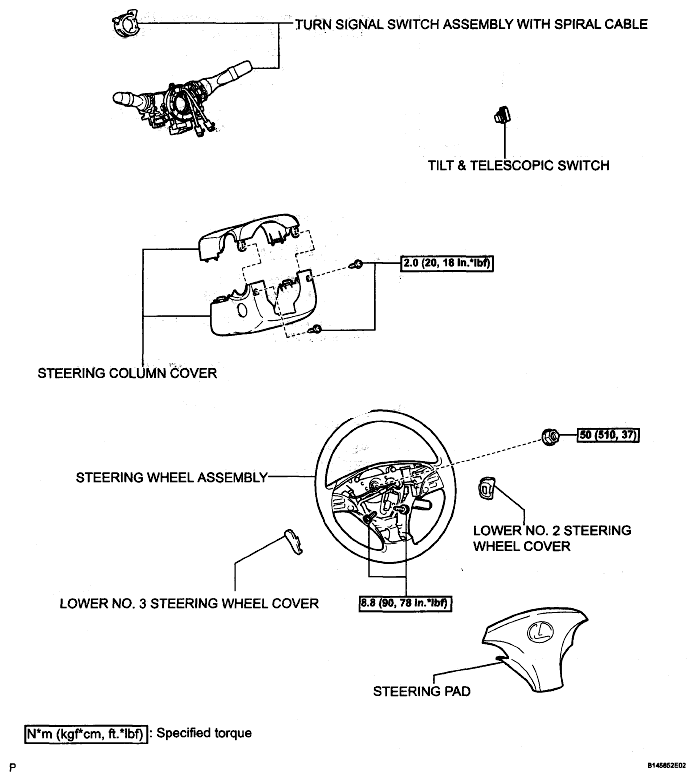

Fig 1: Automatic Light Control Sensor Replacement Components With Torque Specifications (1 Of 8)

G05252528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

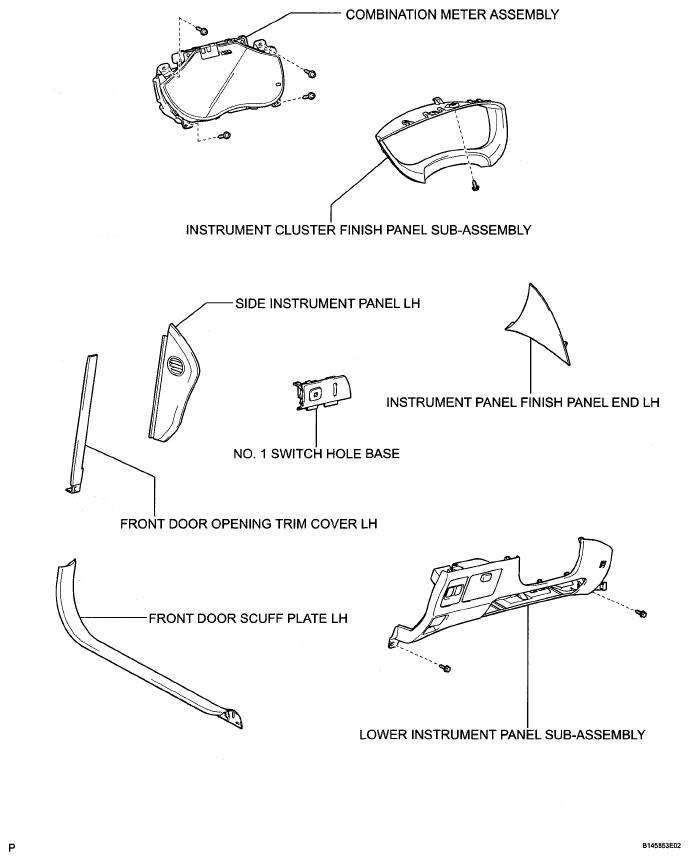

Fig 2: Identifying Automatic Light Control Sensor Components (2 Of 8)

G05252529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

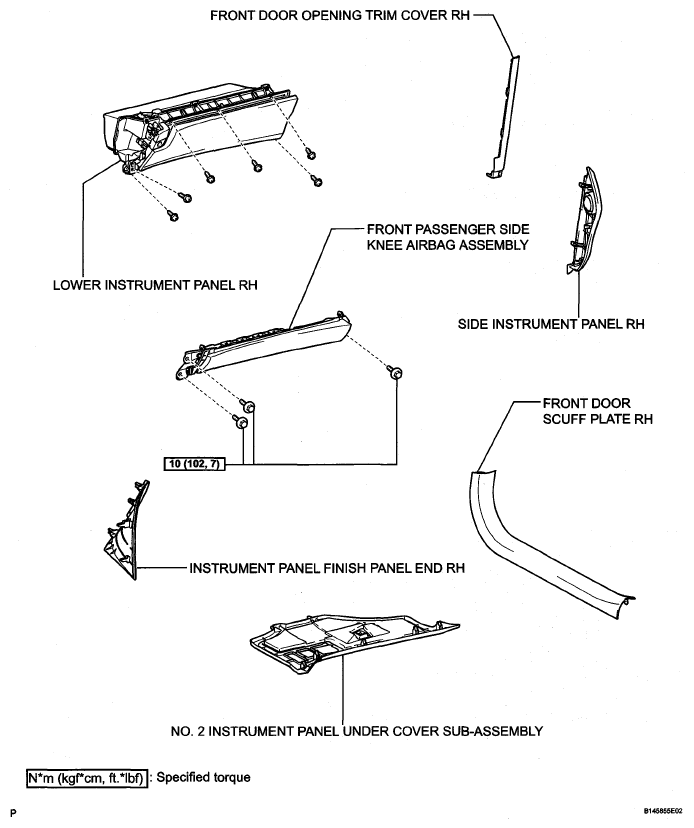

Fig 3: Automatic Light Control Sensor Replacement Components With Torque Specifications (3 Of 8)

G05252530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Automatic Light Control Sensor Components (4 Of 8)

G05251801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

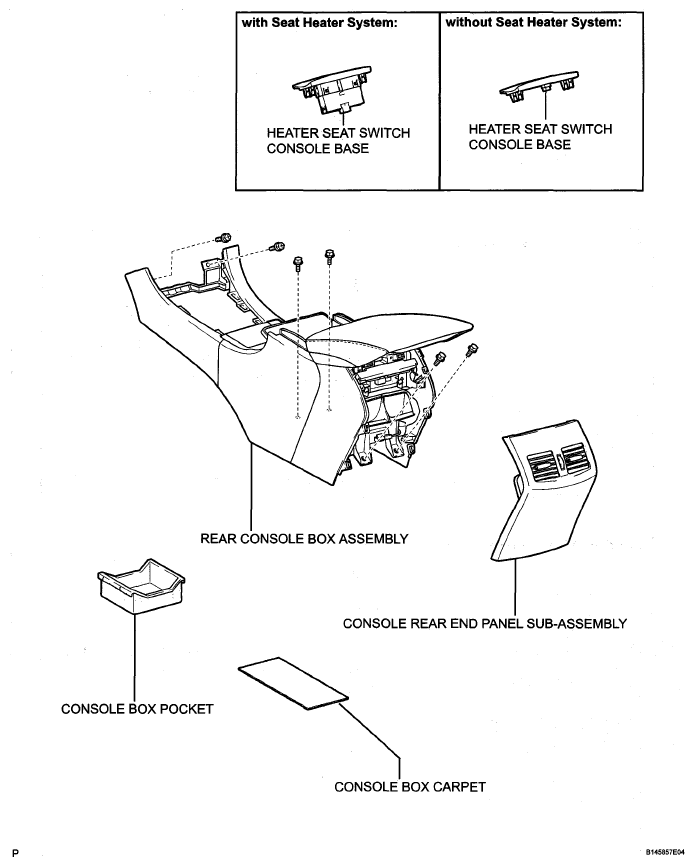

Fig 5: Identifying Automatic Light Control Sensor Components (5 Of 8)

G05252532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Automatic Light Control Sensor Components (6 Of 8)

G05251803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Automatic Light Control Sensor Replacement Components With Torque Specifications (7 Of 8)

G05252534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

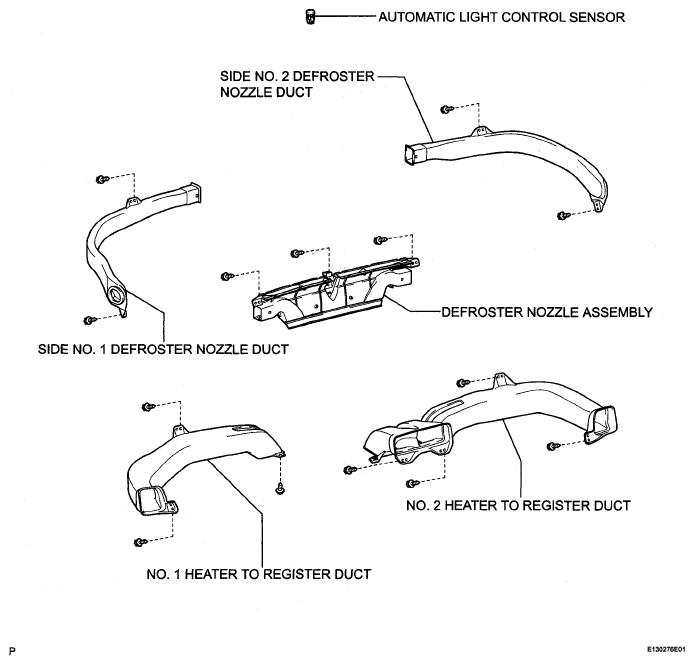

Fig 8: Identifying Automatic Light Control Sensor Components (8 Of 8)

G05252535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
