Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO RECEIVER

Measure the voltage according to the value(s) in the table below.

Standard voltage

VOLTAGE SPECIFICATION

Tester Connection	Condition	Specified Condition
MCVD - Body ground	Engine switch on (ACC)	4 to 6 V

Fig 1: Identifying Radio Receiver Connector Terminal E73

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RADIO RECEIVER

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - BODY GROUND)

Disconnect the radio receiver connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
TSW- - MGND	Always	Below 1 Ω
TSW- - Body ground	Always	10 kΩ or higher

Fig 2: Identifying Radio Receiver Connector Terminal E73

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (OVERHEAD J/B (MICROPHONE) - RADIO RECEIVER)

Disconnect the overhead J/B (microphone) connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
MCVD - ACC	Always	Below 1 Ω
MI1+ - MIC+	Always	Below 1 Ω
MIC- - MIC-	Always	Below 1 Ω
ACC - Body ground	Always	10 kΩ or higher
MIC+ - Body ground	Always	10 kΩ or higher
MIC- - Body ground	Always	10 kΩ or higher

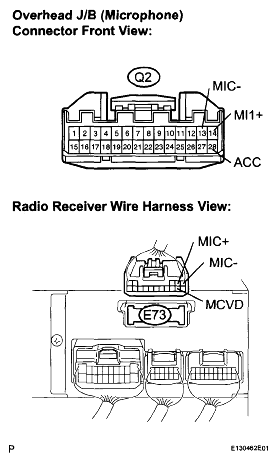

Fig 3: Identifying Overhead J/B (Microphone) Connector And Radio Receiver Connector E73

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
