Shift Lever: Components

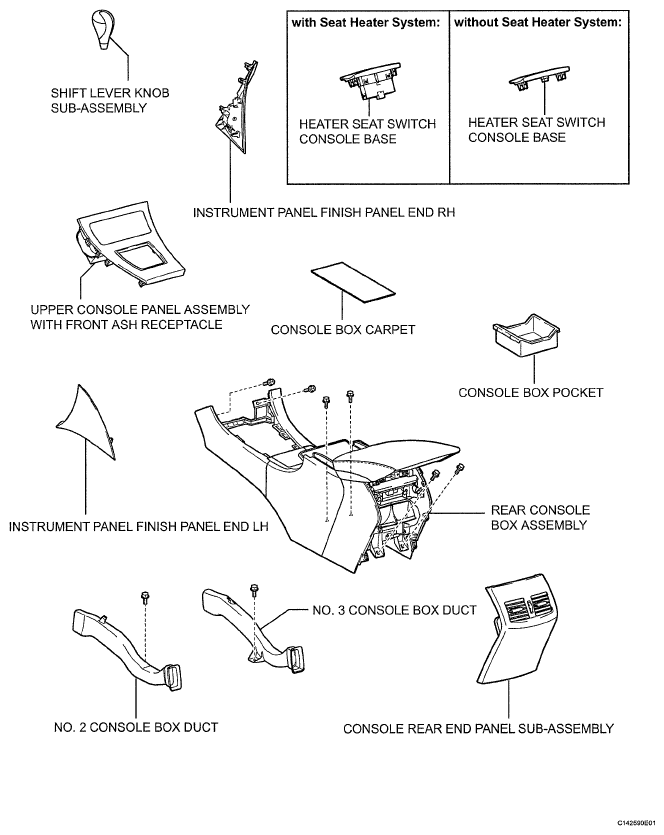

Fig 1: Identifying Shift Lever Components (1 Of 2)
G05836205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

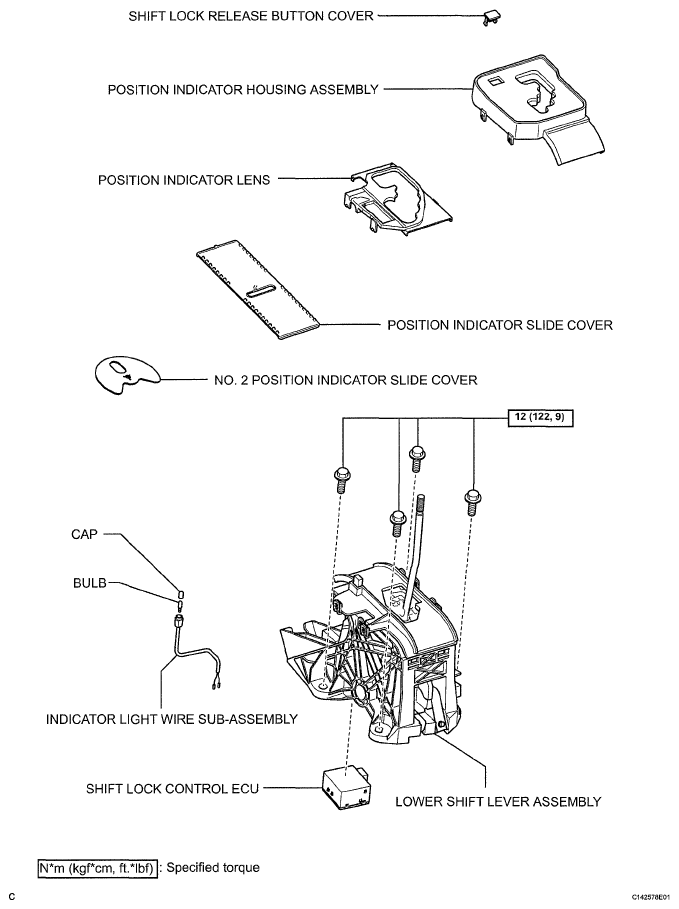

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G05836206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
