Steering Angle Sensor: Components

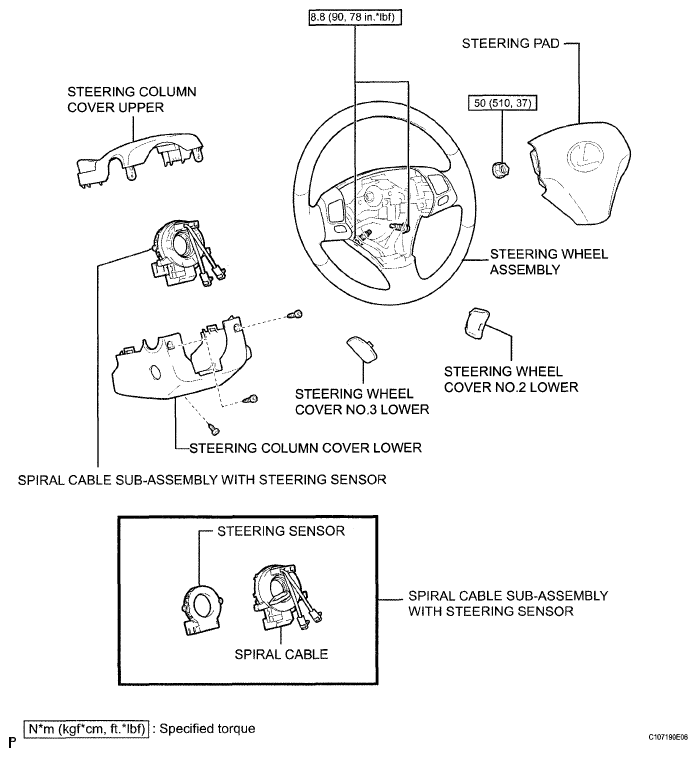

Fig 1: Identifying Steering Angle Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
