System Diagram

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow Diagram (Direct Injection Side)
    G05286881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Fuel Flow Diagram (Port Injection Side)
    G05286882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM
    Fig 3: Electrical Control Diagram
    G05286883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

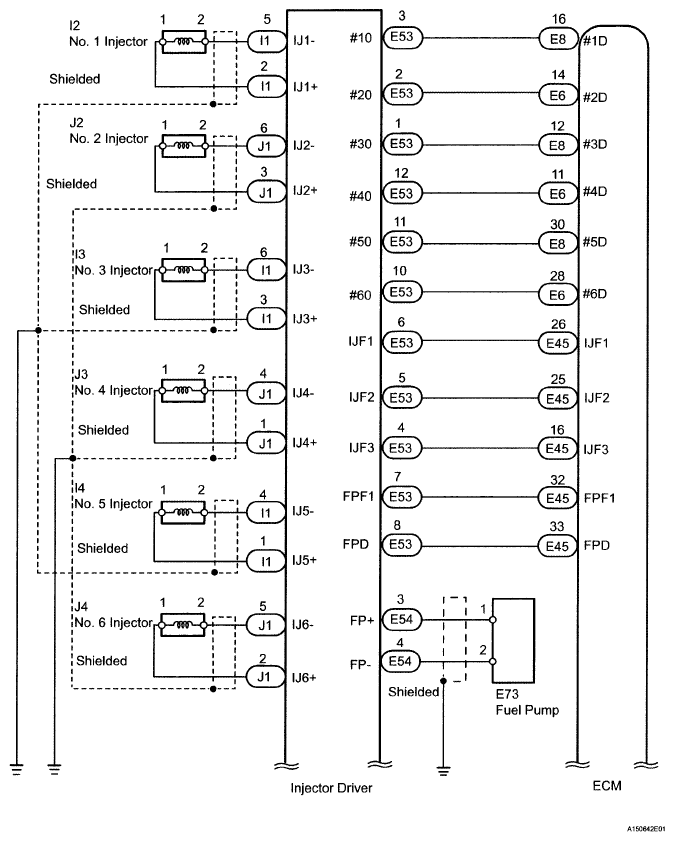

    Fig 4: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (1 Of 2)
    G05805242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

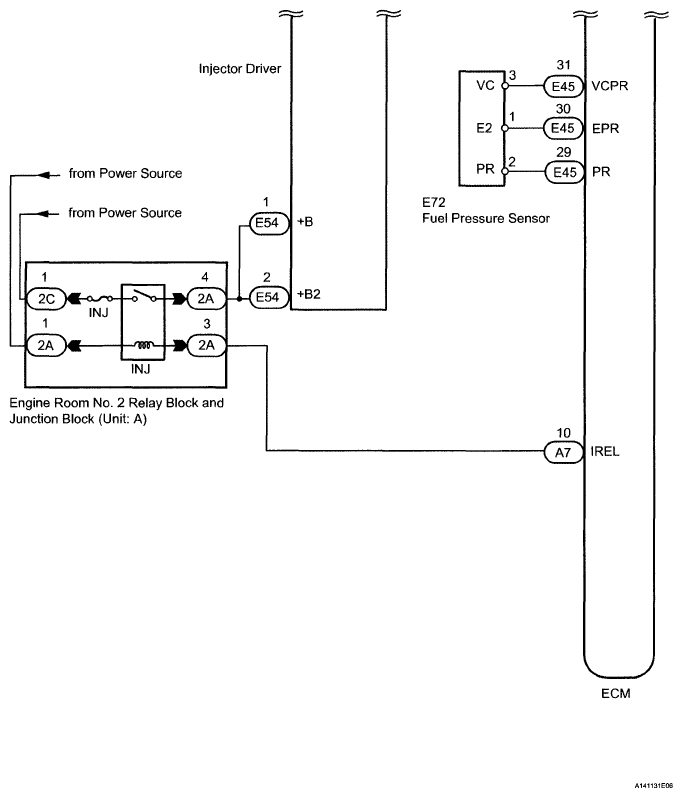

    Fig 5: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (2 Of 2)
    G05805243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

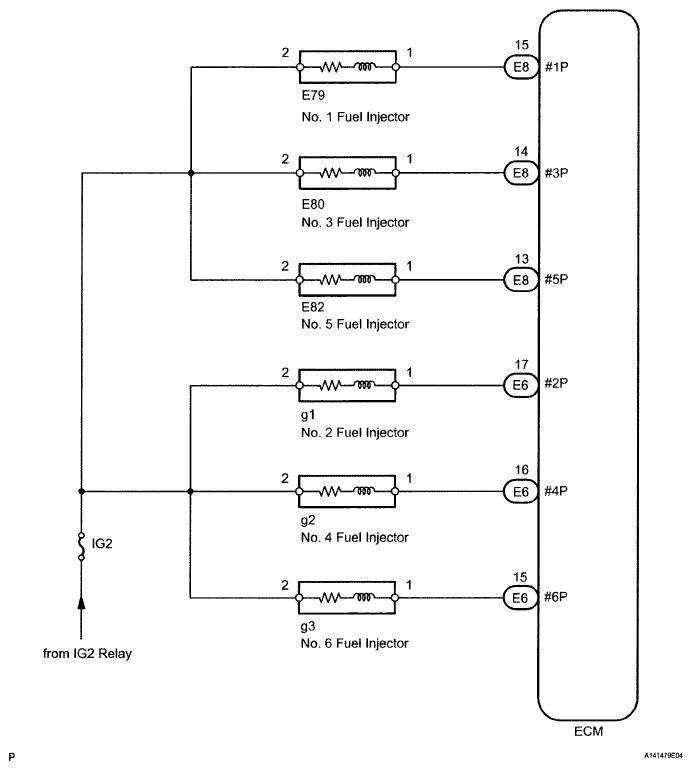

    Fig 6: Port Injection Side Fuel System - Wiring Diagram
    G05805244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

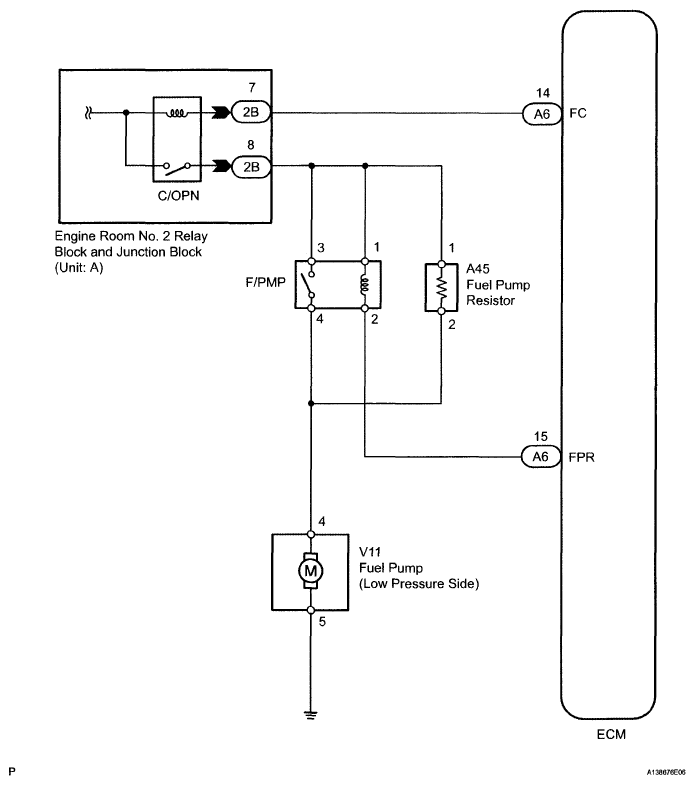

    Fig 7: Low Pressure Side Fuel System - Wiring Diagram
    G05805245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
