System Diagram

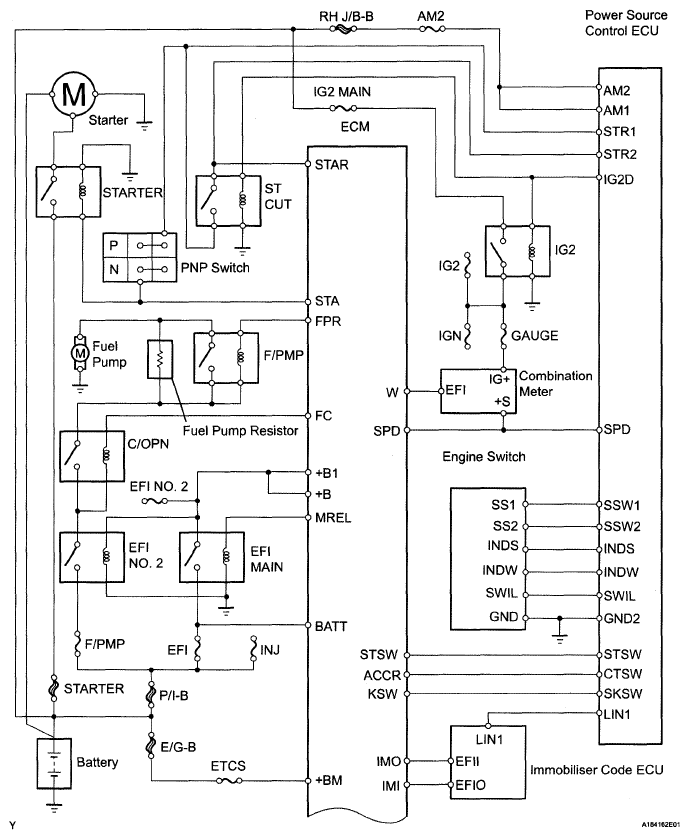

Fig 1: 2Gr-Fse Engine Control System Diagram (1 Of 6)
G05803170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

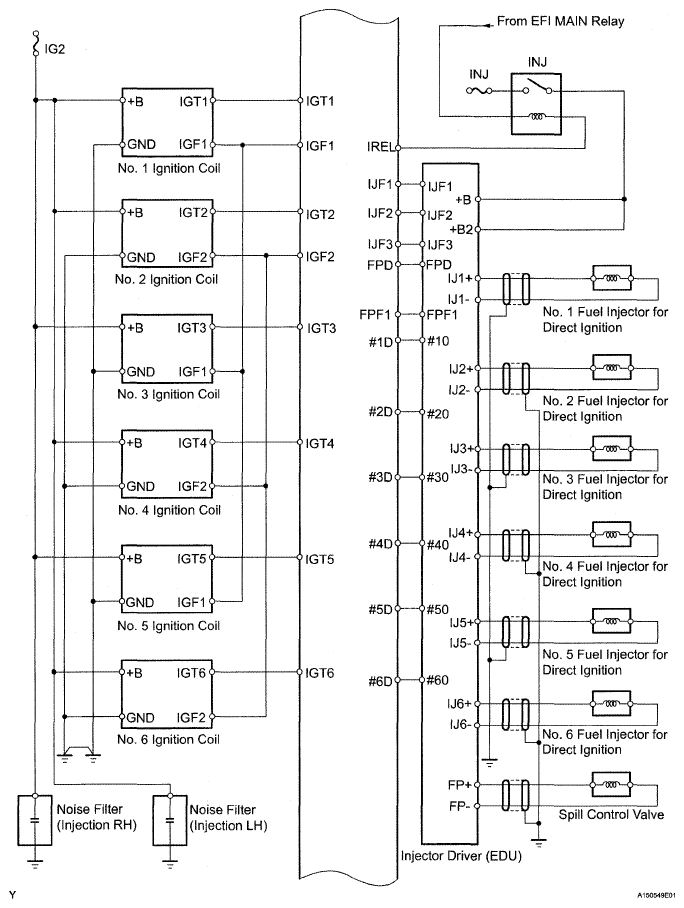

Fig 2: 2Gr-Fse Engine Control System Diagram (2 Of 6)
G05285016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

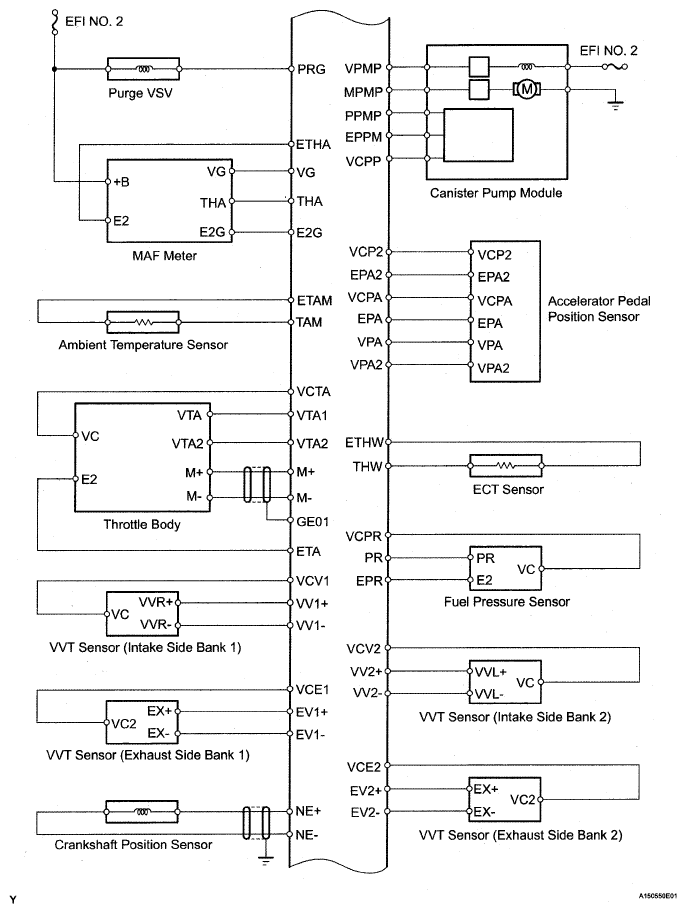

Fig 3: 2Gr-Fse Engine Control System Diagram (3 Of 6)
G05285017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

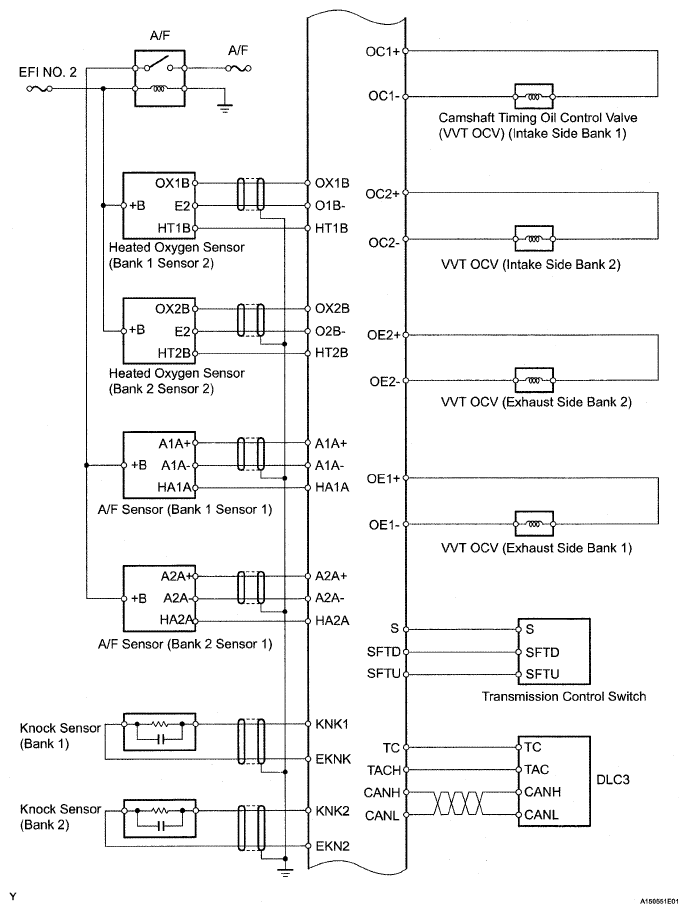

Fig 4: 2Gr-Fse Engine Control System Diagram (4 Of 6)
G05285018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

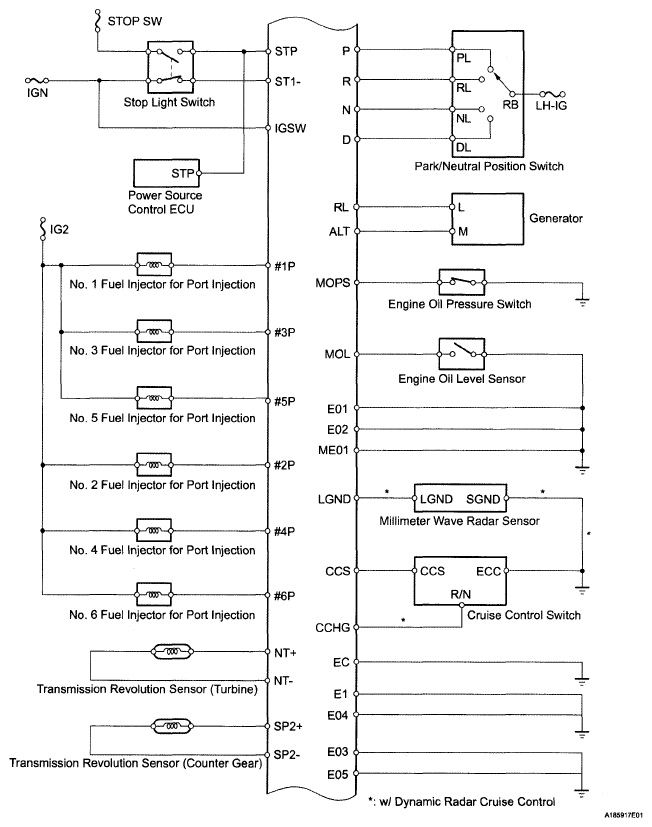

Fig 5: 2Gr-Fse Engine Control System Diagram (5 Of 6)
G05803174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

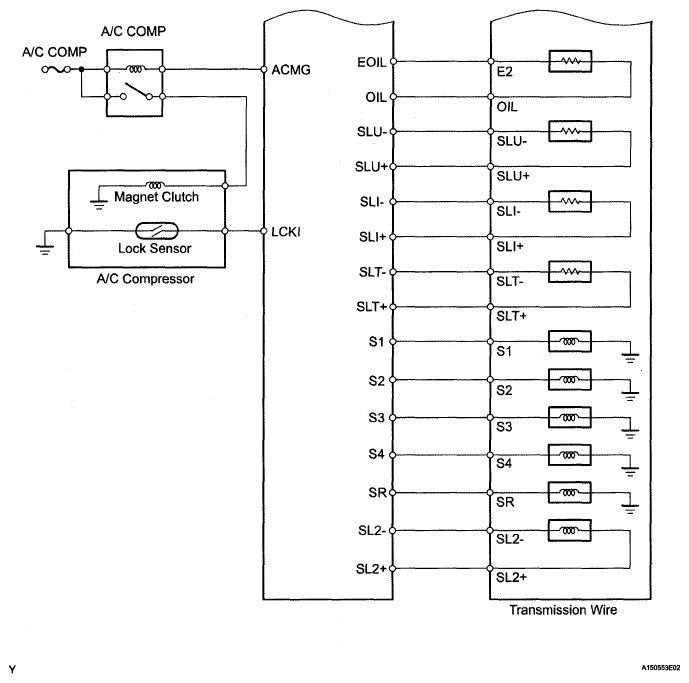

Fig 6: 2Gr-Fse Engine Control System Diagram (6 Of 6)
G05803175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
