Valve Body Assembly: Disassembly

  1. REMOVE SHIFT SOLENOID VALVE
    1. Remove the bolt, lock plate and lock up control solenoid (SLU) and clutch control solenoid (SL2).

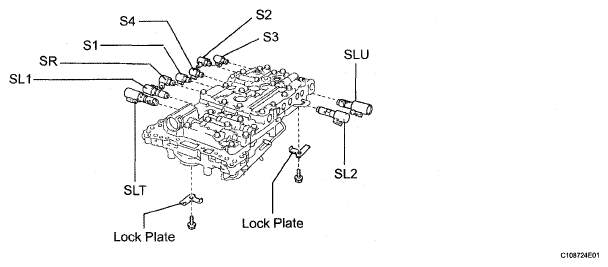

      Fig 1: Disassembling Shift Solenoid Valve
      G05294784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and automatic transmission 3-way solenoid assembly (S3).
    3. Remove the bolt and automatic transmission 3-way solenoid (S2) and automatic transmission 3-way solenoid (S4).
    4. Remove the automatic transmission 3-way solenoid (S1).
    5. Remove the bolt and automatic transmission 3-way solenoid (SR).
    6. Remove the bolt, lock plate and clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT).
