Automatic Transmission Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ENGINE UNDER COVER
REMOVE NO. 2 ENGINE UNDER COVER
REMOVE ENGINE UNDER COVER AIR GUIDE BRACKET
1. Remove the 2 bolts and bracket.
DRAIN COOLANT (See REPLACEMENT )
DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug and gasket, and drain the ATF.
2. Install a new gasket and the drain plug.

  Fig 1: Locating Gasket And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
1. Remove the propeller shaft with center bearing (See REMOVAL ).
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE V-BANK COVER (See REMOVAL )
DISCONNECT NO. 2 RELAY BLOCK (See REMOVAL )
REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (See REMOVAL )
REMOVE STARTER ASSEMBLY (See REMOVAL )
REMOVE FLYWHEEL HOUSING SIDE COVER
1. Remove the flywheel housing side cover from the engine assembly.

  Fig 2: Identifying Flywheel Housing Side Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT
1. Turn the crankshaft to gain access to each bolt.
2. Hold the crankshaft pulley nut with a wrench and remove the 6 torque converter clutch setting bolts.
DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Move the shift lever to the N position.

  Fig 3: Locating Torque Converter Clutch Setting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, and disconnect the floor shift gear shifting rod.

  Fig 4: Locating Floor Shift Gear Shifting Rod Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
1. Support the automatic transmission assembly with a transmission jack.

  Fig 5: Supporting Automatic Transmission Assembly With Transmission Jack
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE REAR MOUNTING MEMBER
1. Remove the 4 bolts, and disconnect the engine rear mounting member from the body.

  Fig 6: Locating Engine Rear Mounting Member Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 nuts and engine rear mounting member from the automatic transmission assembly.

  Fig 7: Locating Engine Rear Mounting Member Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WIRE HARNESS AND CONNECTOR
1. Remove the bolt and disconnect the ground wire.

  Fig 8: Locating Ground Wire Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tilt down the automatic transmission assembly.

  Fig 9: Tilting Down Automatic Transmission Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

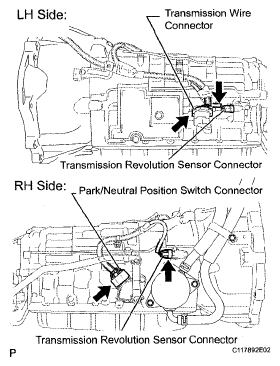

3. Disconnect the park/neutral position switch connector, transmission wire connector, and 2 transmission revolution sensor connectors.

  Fig 10: Locating Transmission Revolution Sensor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Detach the claw, press down the lever, and then disconnect the transmission wire connector.

  Fig 11: Pressing Down Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

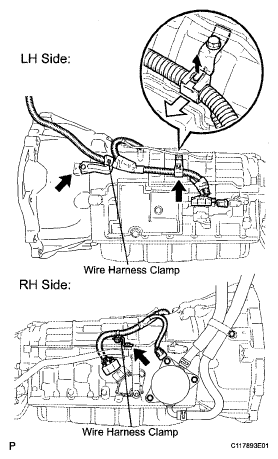

4. Remove the 2 bolts and disconnect the wire harness clamps from the automatic transmission assembly.

  Fig 12: Locating Automatic Transmission Assembly Wire Harness Clamps Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER BY-PASS HOSE
1. Remove the bolt and water by-pass hose clamp.
2. Disconnect the 2 water by-pass hoses from the transmission oil cooler.
  NOTE: Use a container to catch any coolant which flows out of the water by-pass hoses.

  Fig 13: Locating Water By-Pass Hose Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
1. Remove the 9 bolts and automatic transmission.
  NOTE: Do not use excess force to pry on the transmission assembly.

  Fig 14: Locating Automatic Transmission And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR
1. Remove the 4 bolts and rear engine mounting insulator from the automatic transmission assembly.

  Fig 15: Locating Rear Engine Mounting Insulator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SHAFT LEVER RH
1. Remove the nut and transmission control shaft lever from the park/neutral position switch.

  Fig 16: Identifying Transmission Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION OIL COOLER
1. Remove the 3 bolts and transmission oil cooler and spacer from the automatic transmission assembly.

  Fig 17: Locating Transmission Oil Cooler And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 O-rings from the spacer.

  Fig 18: Identifying Spacer O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
1. Put matchmarks on the torque converter and transmission case.
2. Remove the torque converter from the automatic transmission assembly.
INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY (See TORQUE CONVERTER AND DRIVE PLATE )

Fig 19: Identifying Matchmarks On Torque Converter And Transmission Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
