System Diagram

The configuration of the electronic control system in the A760E automatic transmission is as shown in the following chart.

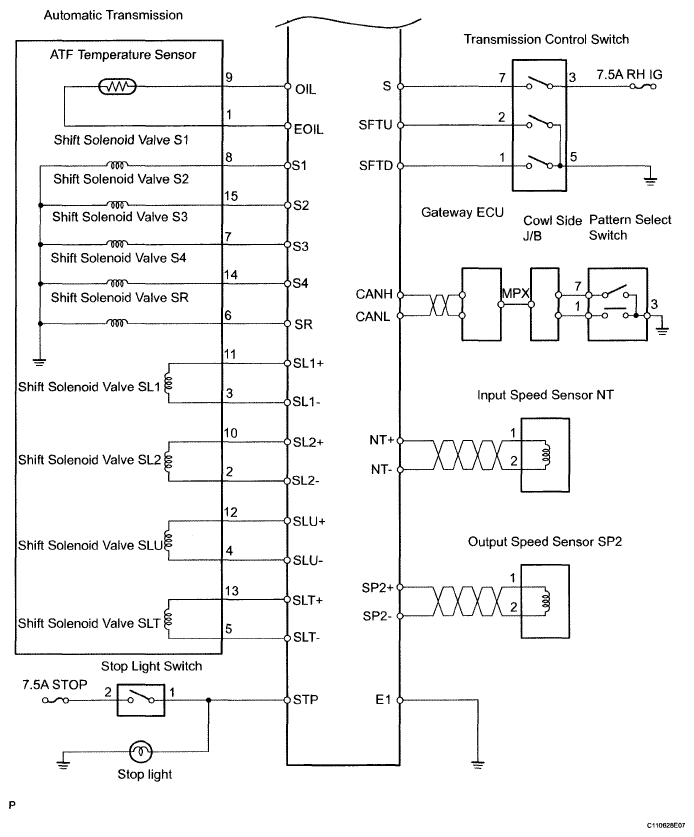

Fig 1: Electronic Controlled Automatic Transmission System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

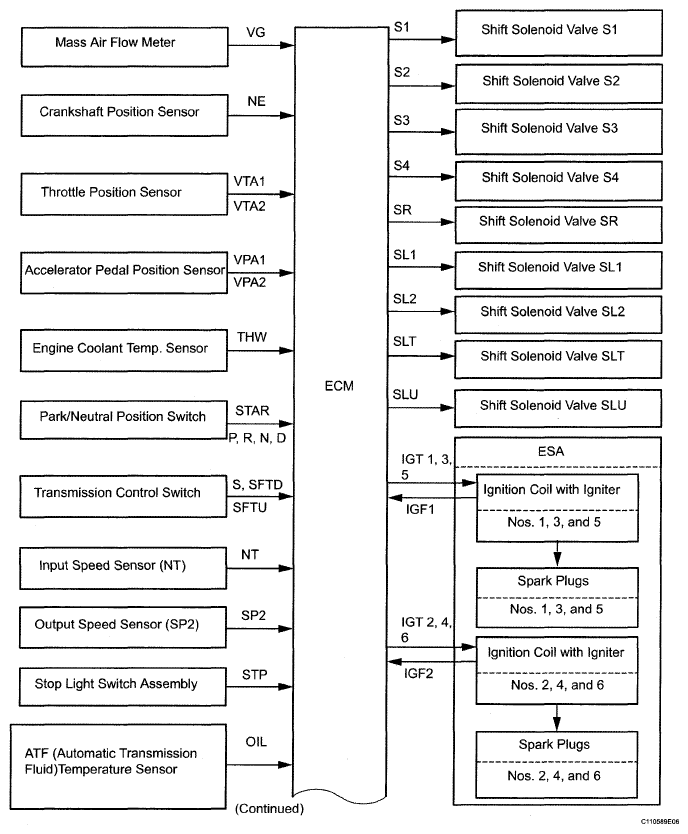

Fig 2: Electronic Controlled Automatic Transmission System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

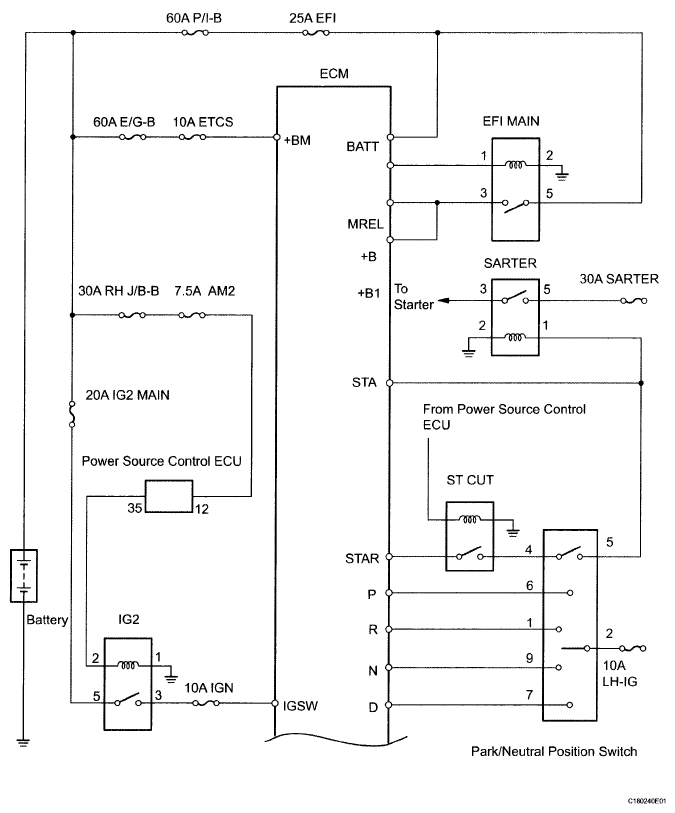

Fig 3: Electronic Controlled Automatic Transmission System Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Electronic Controlled Automatic Transmission System Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
