Customize Parameters

CUSTOMIZE PARAMETERS (TECHSTREAM)

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

Warning

WARNING CUSTOMIZE PARAMETERS

Tester Display	Default	Contents	Setting
Front Buzzer Onset Range	Wide	Function to set front buzzer activation range	Narrow / Wide
Rear Buzzer Onset Range	Wide	Function to set rear buzzer activation range	Narrow / Wide
Keep Sense Status Buzzer	ON	Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds	ON / OFF
Fr & Rr Buzzer Volume	M2	Function to change volume of buzzer	L / M1 / M2 / M3 / H

Sensor

SENSOR CUSTOMIZE PARAMETERS

Tester Display	Default	Contents	Setting
Sensor Condition N Range	OFF	Function to make sensors available when shift position is N	OFF / ON
Sonar Mode	Steering	Function to change sonar mode	Normal / Steering

Display

DISPLAY CUSTOMIZE PARAMETERS

Tester Display	Default	Contents	Setting
Display Mode	Guide	Function to change display mode	All / Guide / Undisp

CUSTOMIZE MODE (MANUAL OPERATION METHOD)

The settings shown below can be changed using customize mode. Enter customize mode by pressing and holding the clearance sonar main switch, and setting the light control switch from TAIL to OFF 3 times.

Warning

WARNING CUSTOMIZE MODE CHART

Item	Default	Contents	Setting
Front detection range	1,000 mm (39.37 in.)	Function to set a front detection range	500 mm (19.69 in.)/1,000 mm (39.37 in.)
Rear detection range	1,500 mm (59.06 in.)	Function to set a rear detection range	600 mm (23.62 in.) /1,500 mm (59.06 in.)

Sensor

SENSOR CUSTOMIZE MODE CHART

Item	Default	Contents	Setting
Sonar mode	Steering sensing mode	Function to change sonar mode	Normal clearance sonar mode / Steering sensing mode

NOTE: Check that the steering wheel is centered and the tires are aligned straightforward before changing to customize mode.

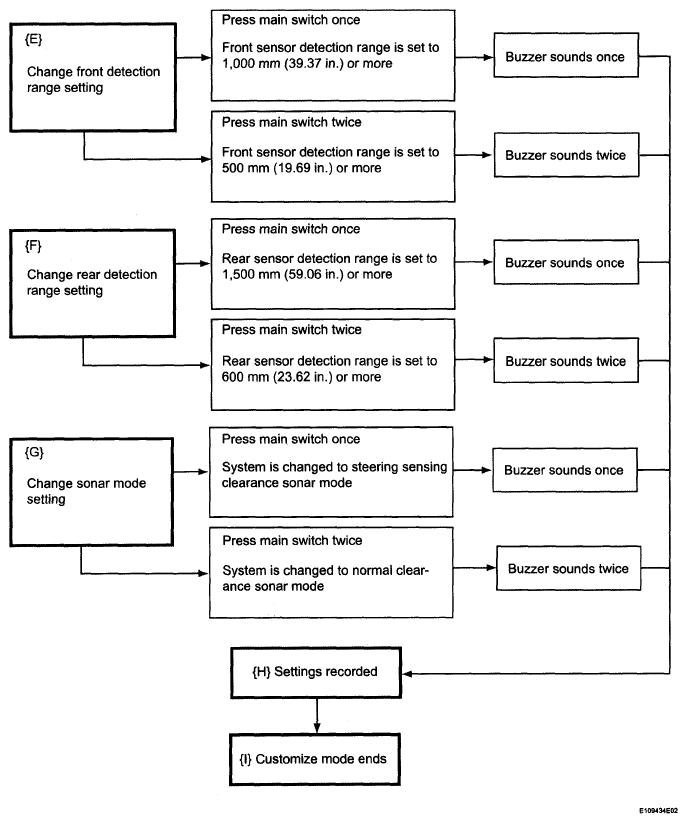

Fig 1: Customize Mode Diagnostic Flow Chart

HINT:

*1: Steering wheel is centered (tires aligned straightforward).
*2: If 180 seconds pass, customize mode will end.
*3: If a steering angle malfunction occurs, customize mode will proceed to {H} (customize mode ends).

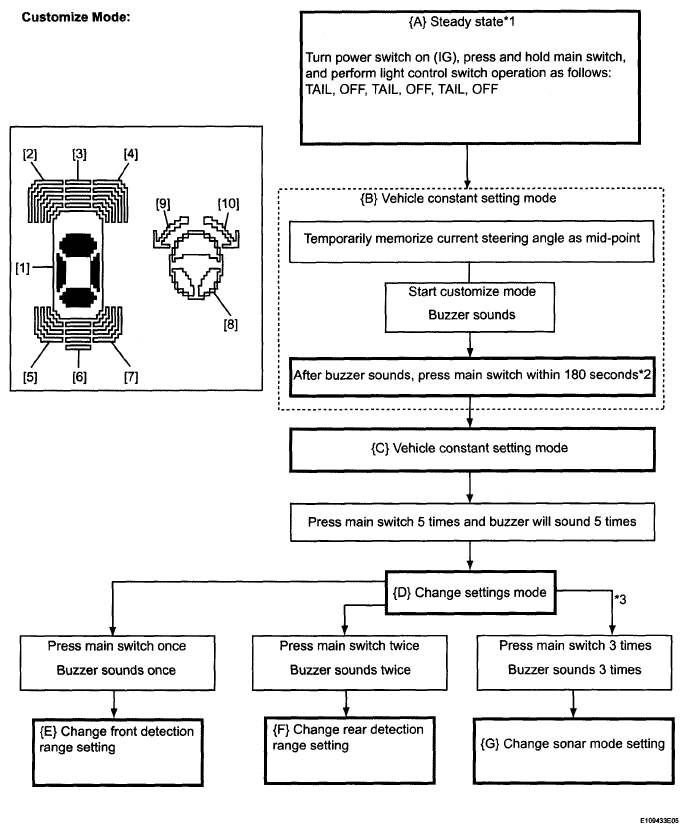

Fig 2: Customize Mode Diagnostic Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multi-information Display Indication Setting in Each Mode

MULTI-INFORMATION DISPLAY INDICATION SETTING CHART

	[1]	[2]	[3]	[4]	[5]	[6]	[7]	[8]	[9]	[10]	Note
[A]	•	X	X	X	X	-	X	Δ	Δ	Δ	[8], [9], [10] will illuminate if steering wheel midpoint is not set
[B]	• ↓ ◦	X ↓ ◦	X	X ↓ ◦	X	-	X	• ↓ ◦	• ↓ ◦	• ↓ ◦	[1], [8] to [10] will illuminate for 2 seconds, then [1], [2], [4], [8] to [10] will flash
[C]	◦	◦	X	◦	X	-	X	X	X	X	[1], [2], [4] will flash
[D]	◦	X	X	X	X	-	X	X	X	X	[1] will flash
[E]	◦	◦	X	X	Δ	-	Δ	X	X	X	[1], [2] will flash At the same time: If the front sensor detection area is set to 500 mm (19.69 in.), [5] will flash If the front sensor detection area is set to 1,000 mm (39.37 in.), [7] will flash
[F]	◦	X	◦	X	Δ	-	Δ	X	X	X	[1], [3] will flash At the same time: If the rear sensor detection area is set to 600 mm (23.62 in.), [5] will flash If the rear sensor detection area is set to 1,500 mm (59.06 in.), [7] will flash
[G]	◦	X	X	◦	Δ	-	Δ	X	X	X	[1], [4] will flash At the same time, if the steering sensing mode is set, [5] will flash If the normal mode is set, [7] will flash
[H]	◦	Δ	Δ	Δ	Δ	-	Δ	X	X	X	[E], [F] and [G] will flash their changed settings for 5 seconds
[I]	•	•	•	•	•	-	•	•	•	•	All except [6] will illuminate for 2 seconds
•: Illumination
◦: Flashing
Δ : Flashes depending on condition
X: No illumination or flashing
