Microphone Amplifier: Components

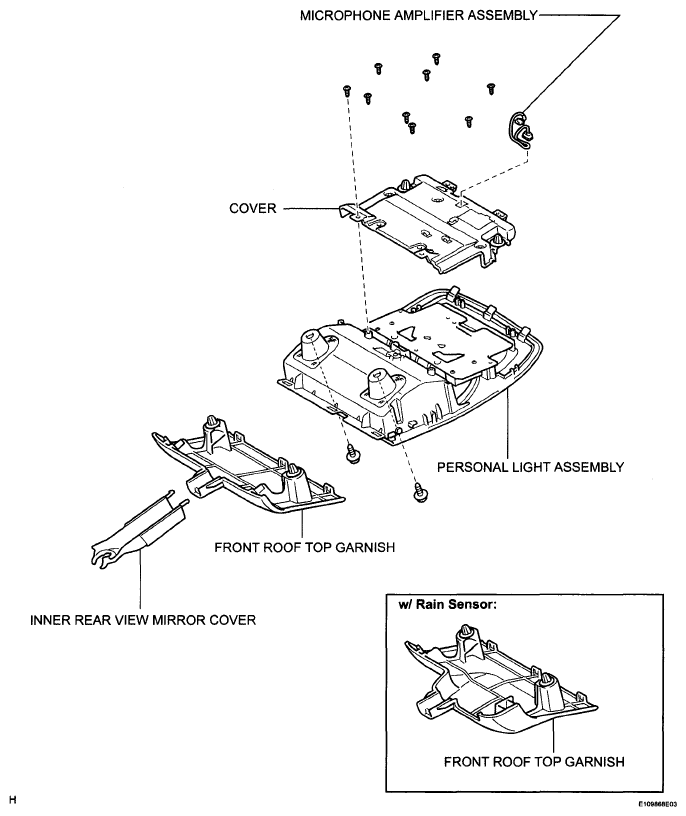

Fig 1: Identifying Microphone Amplifier Components
G05819823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
