Home › Lexus › 2008 › GS 450h › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Audio/Visual › Multi-Display › Components

Entertainment Systems: Audio/Visual: Multi-Display: Components

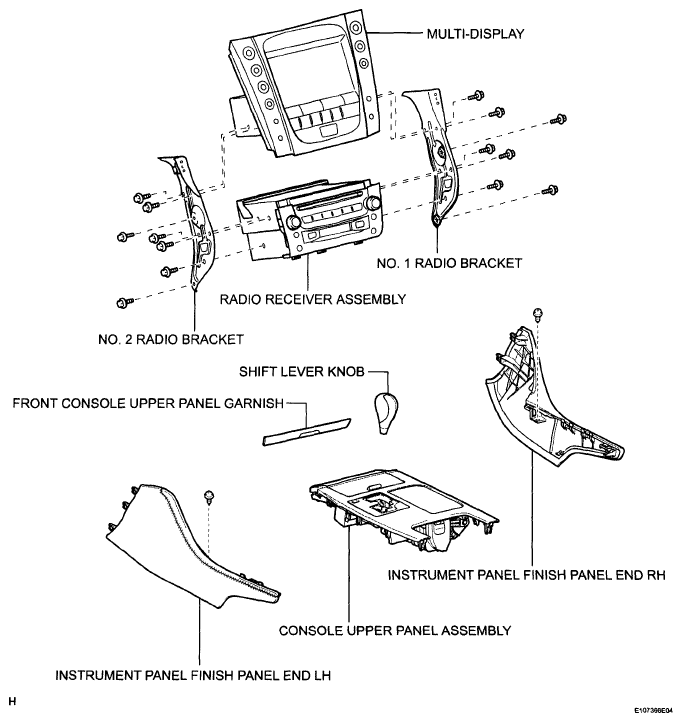

Fig 1: Exploded View Of Multi-Display Components
G05819753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
