Radio Receiver: Components

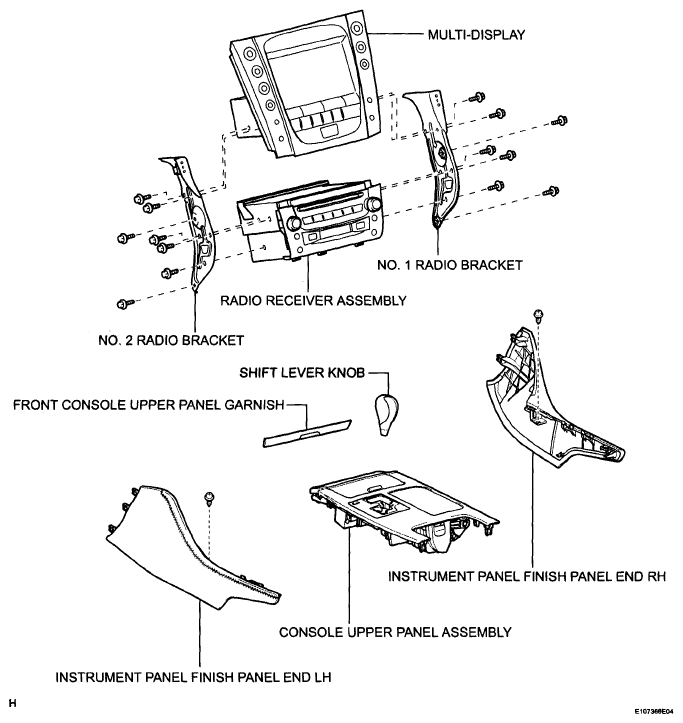

Fig 1: Exploded View Of Radio Receiver Components

G05819741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
