Navigation Antenna: Components

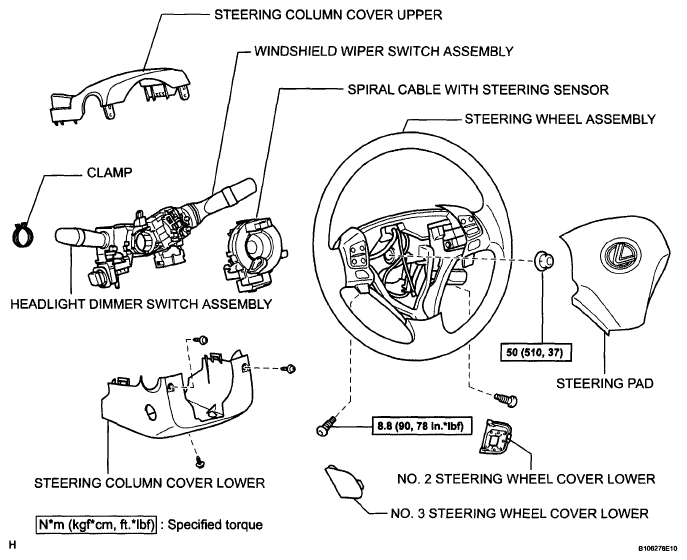

Fig 1: Identifying Navigation Antenna Replacement Components With Torque Specification (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

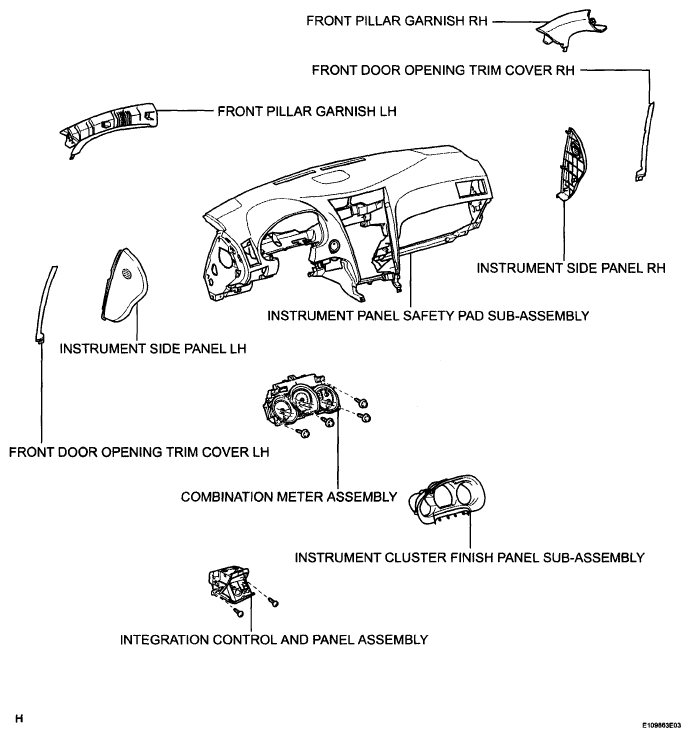

Fig 2: Identifying Navigation Antenna Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

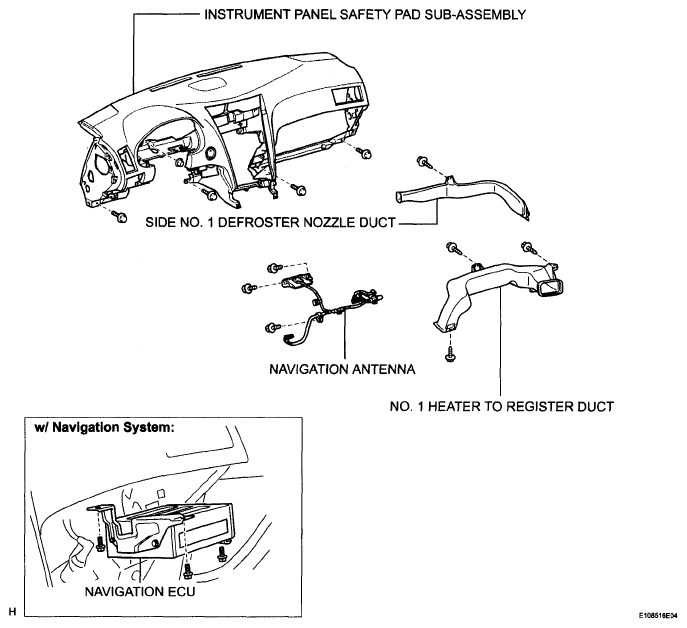

Fig 3: Identifying Navigation Antenna Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

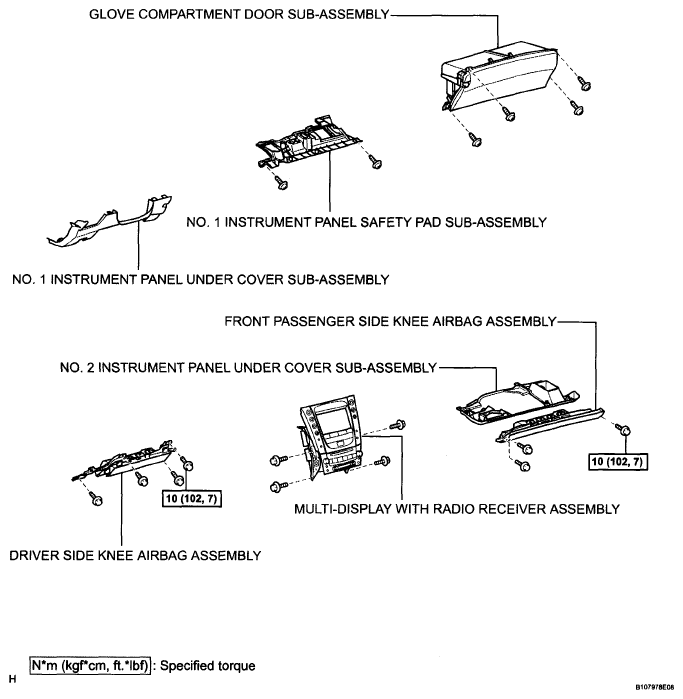

Fig 4: Identifying Navigation Antenna Replacement Components With Torque Specification (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

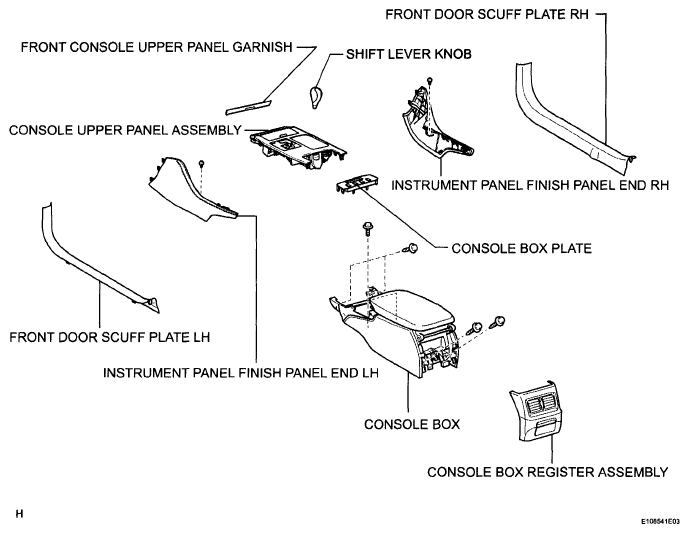

Fig 5: Identifying Navigation Antenna Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
