Brake Control Power Supply: Components

Fig 1: Identifying Brake Control Power Supply Replacement Components (1 Of 2)
G05816443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

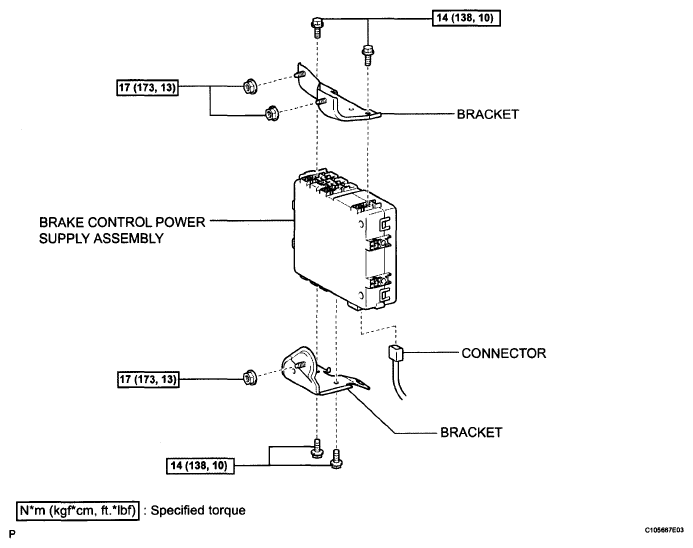

Fig 2: Brake Control Power Supply With Torque Specification (2 Of 2)
G05816444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
