Ground Point: Notes

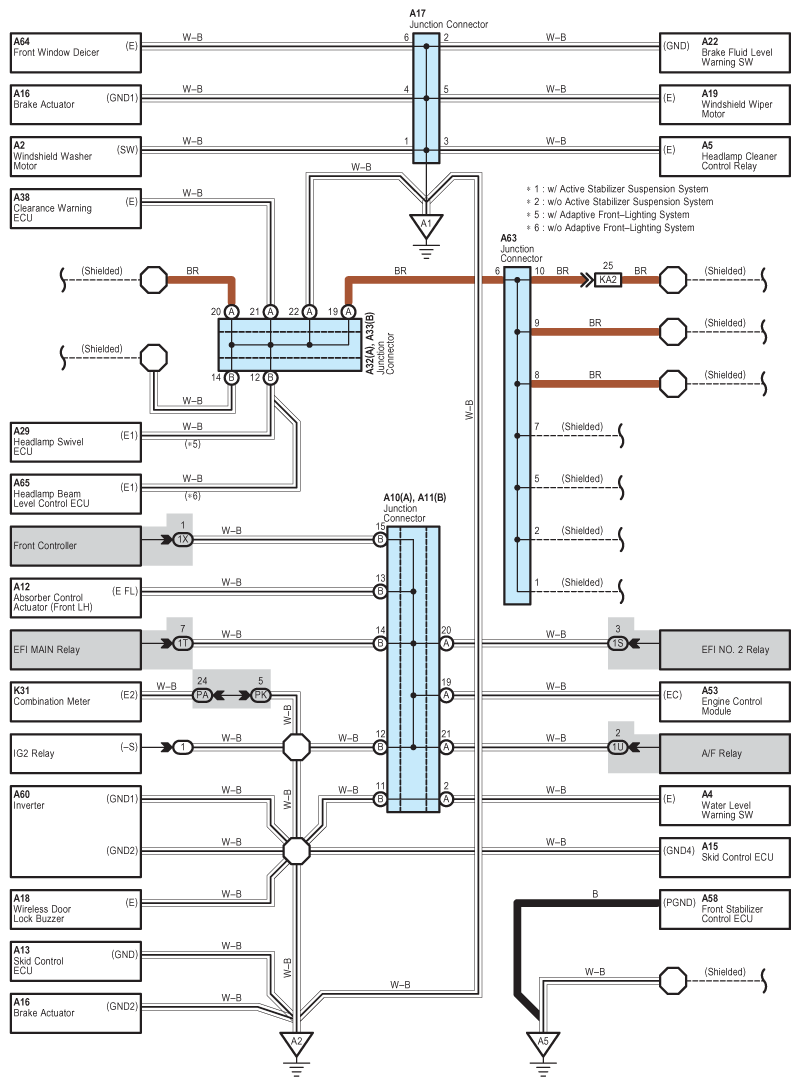

Fig 1: Ground Point - Wiring Diagram (1 Of 8)

G07614174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

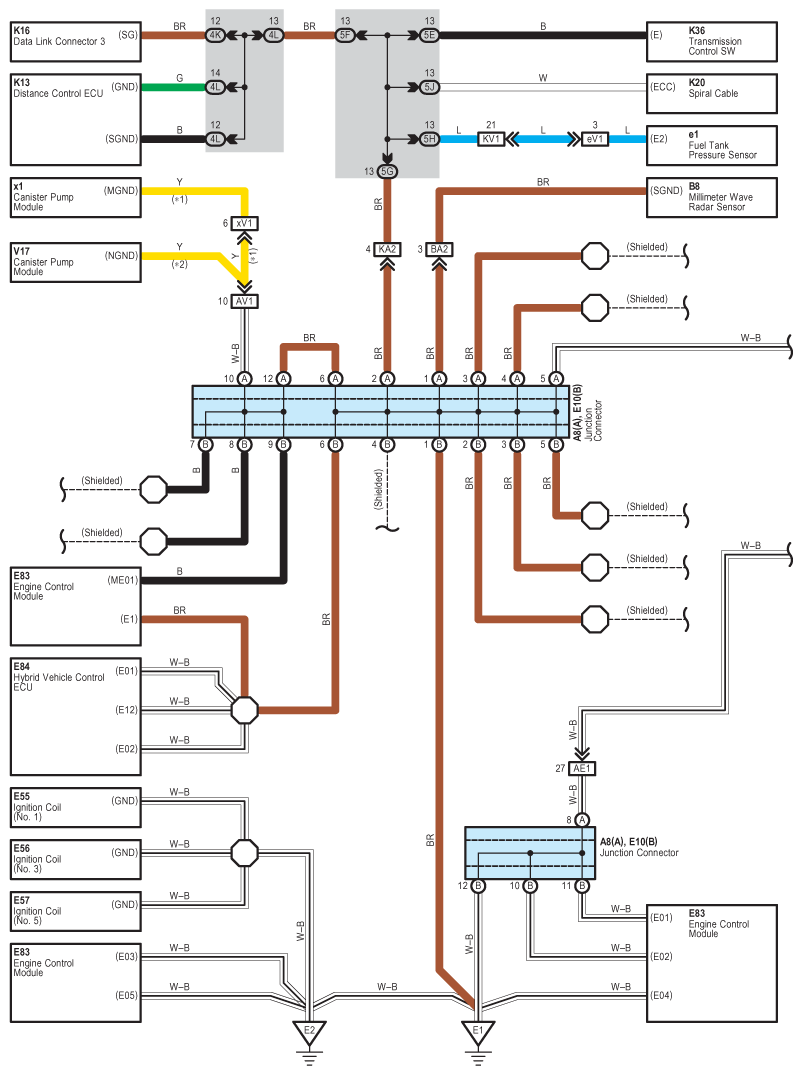

Fig 2: Ground Point - Wiring Diagram (2 Of 8)

G07614175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

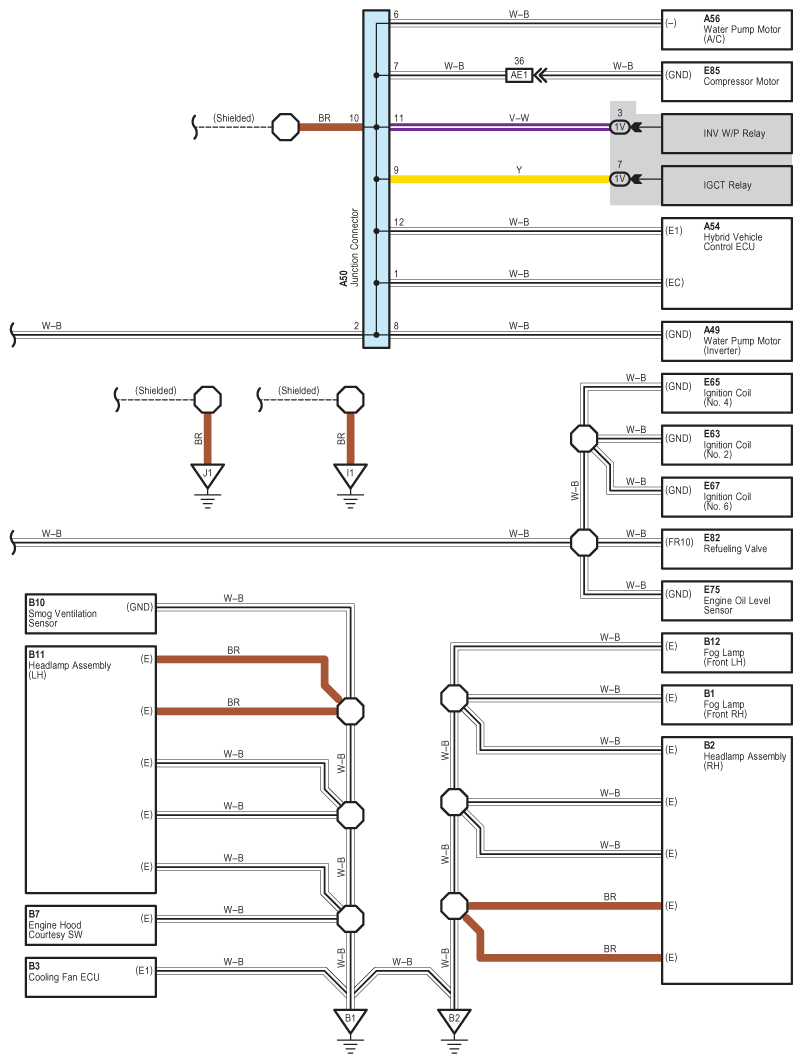

Fig 3: Ground Point - Wiring Diagram (3 Of 8)

G07614176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

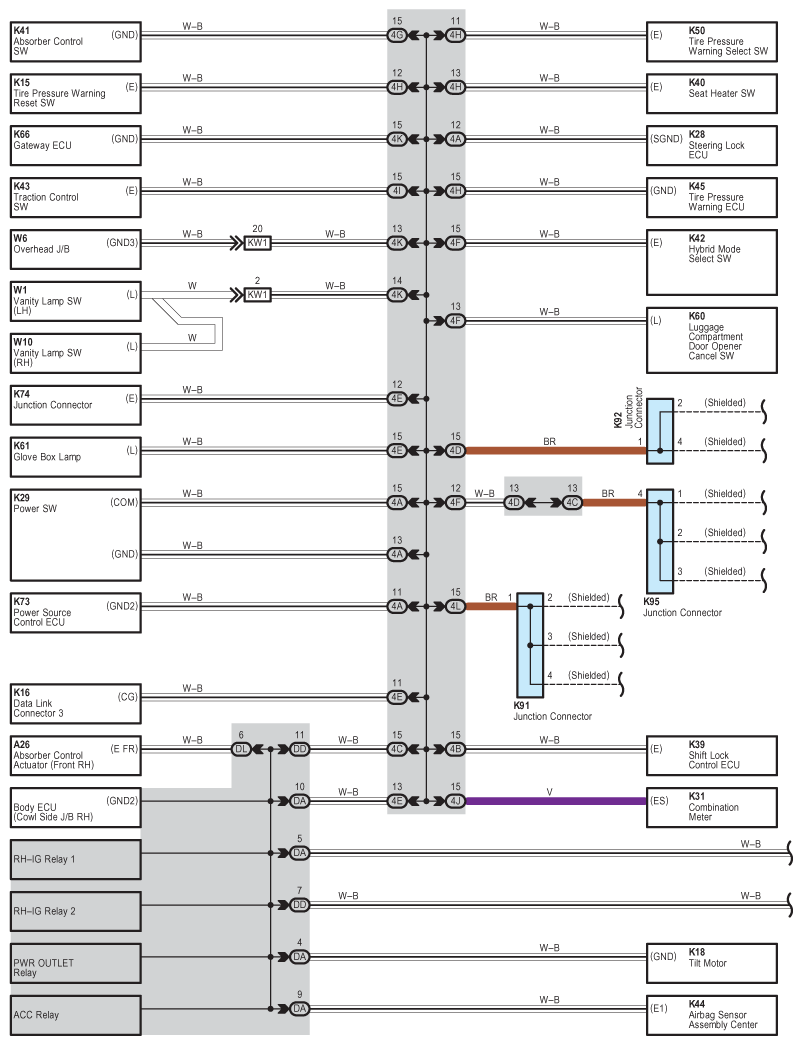

Fig 4: Ground Point - Wiring Diagram (4 Of 8)

G07614177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

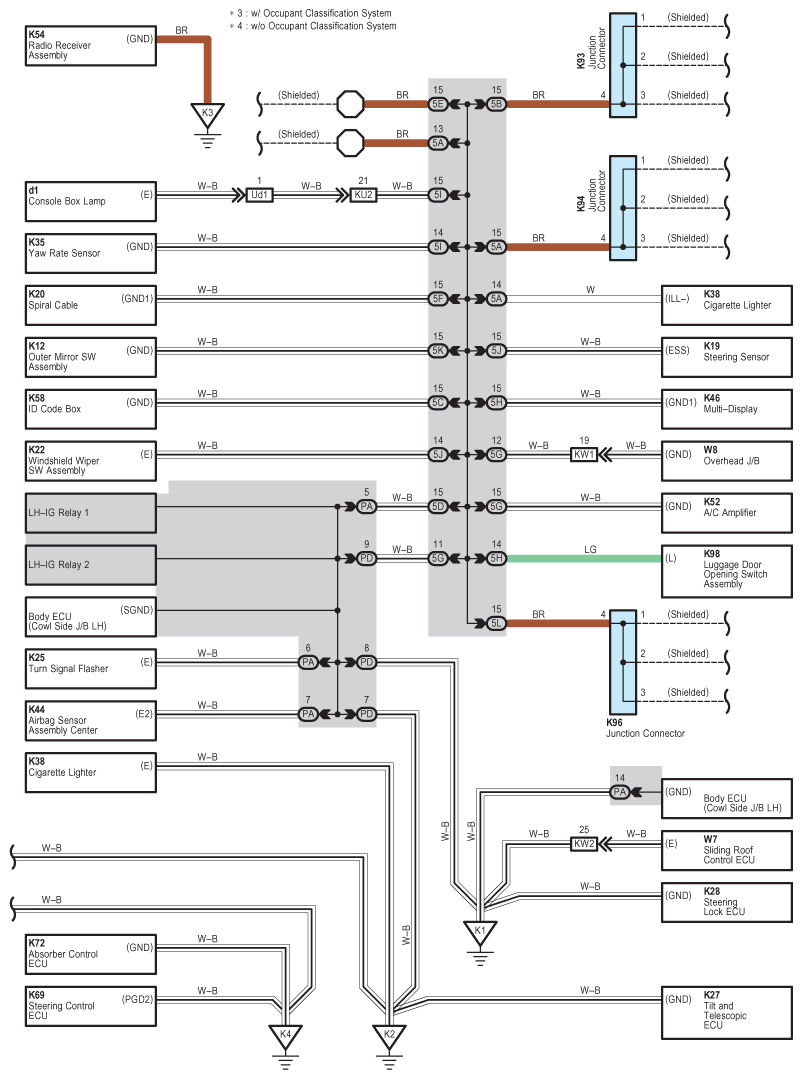

Fig 5: Ground Point - Wiring Diagram (5 Of 8)

G07614178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

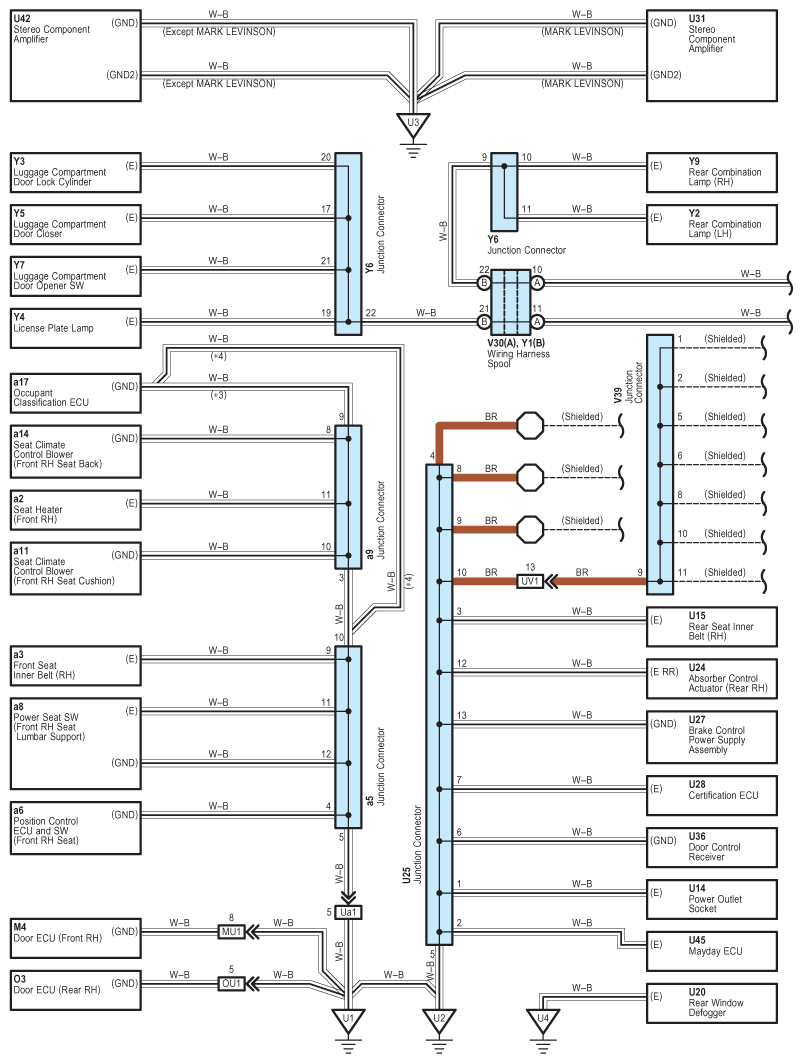

Fig 6: Ground Point - Wiring Diagram (6 Of 8)

G07614179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

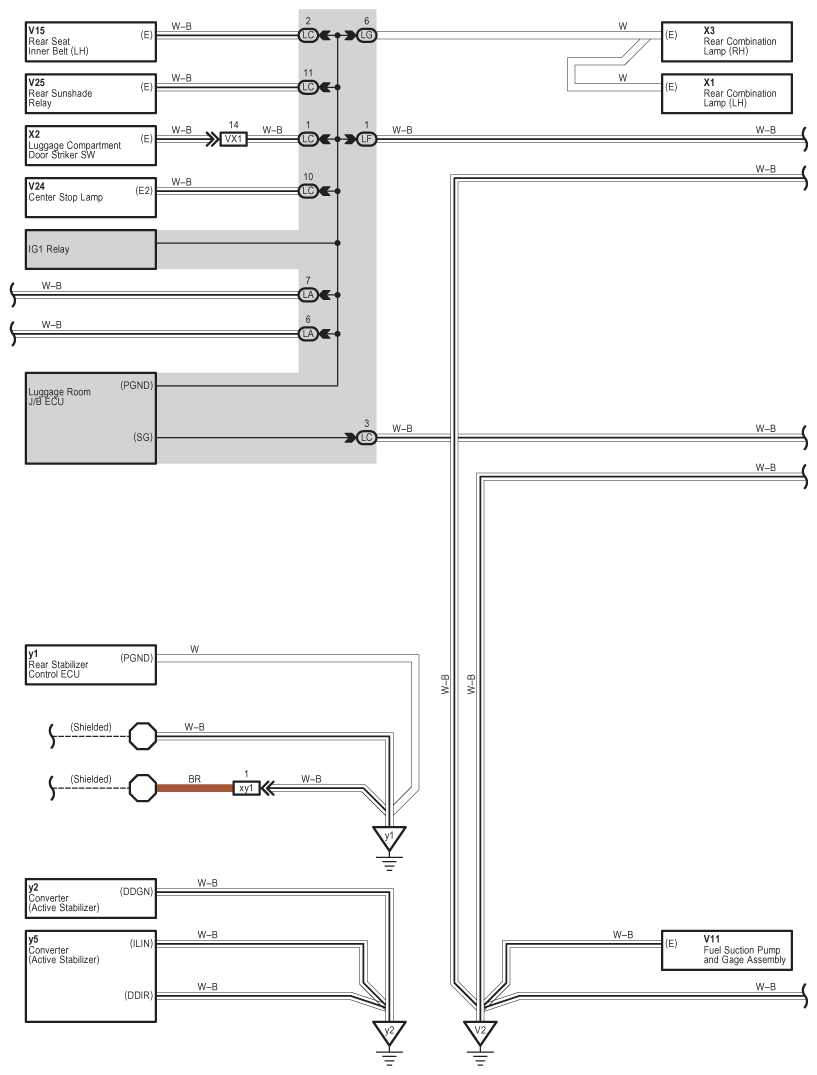

Fig 7: Ground Point - Wiring Diagram (7 Of 8)

G07614180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

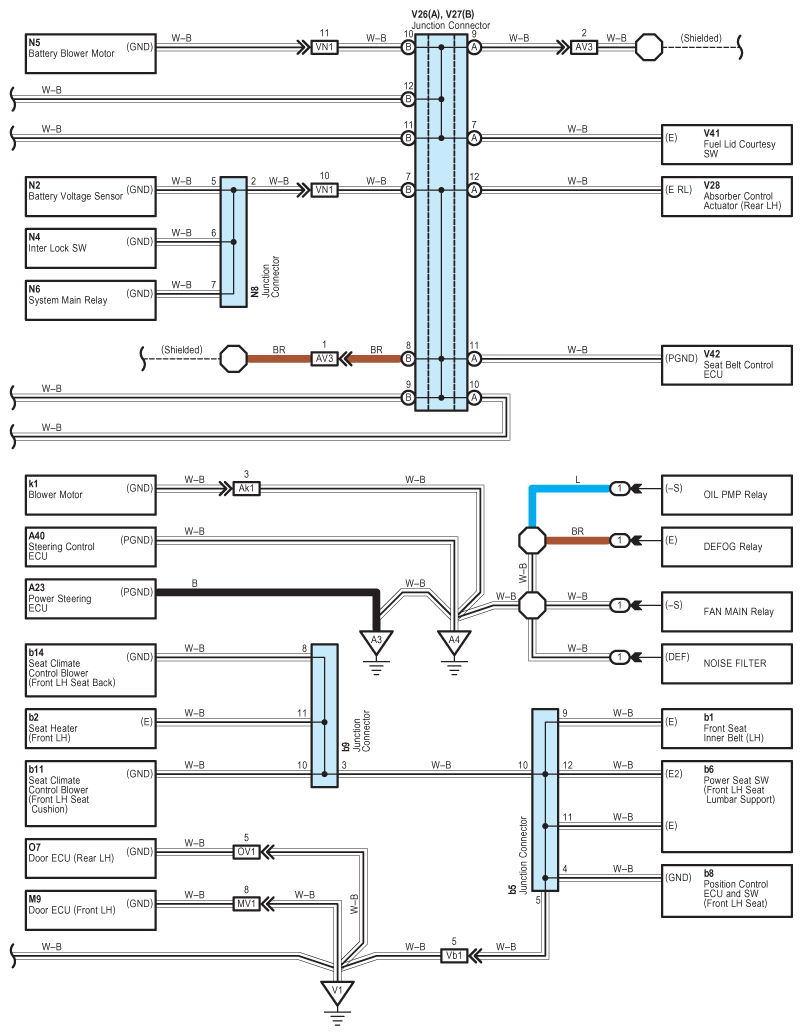

Fig 8: Ground Point - Wiring Diagram (8 Of 8)

G07614181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
